(05-08) - PRIORITY VALVE - STEERING, AUXILIARY

Запчасти Case 621D (05-08) - PRIORITY VALVE - STEERING, AUXILIARY (05) - STEERING

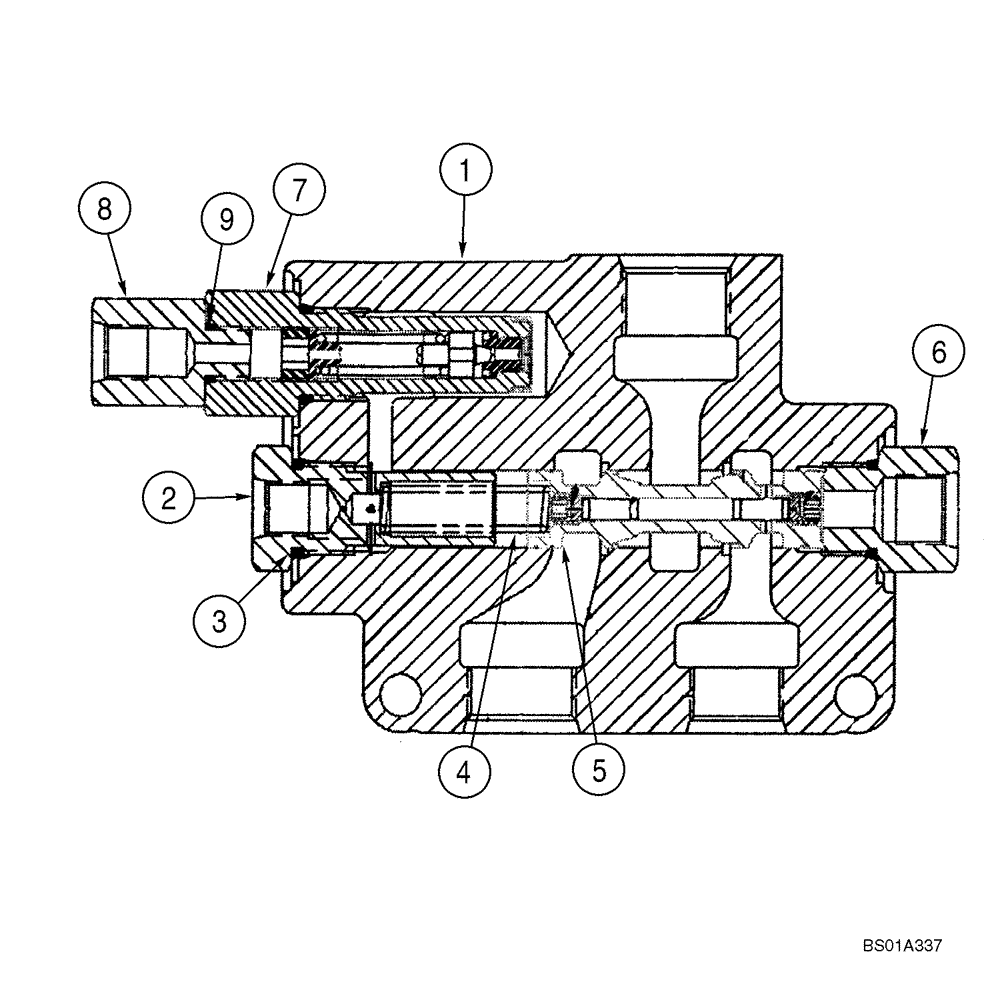

Схема запчастей Case 621D - (05-08) - PRIORITY VALVE - STEERING, AUXILIARY (05) - STEERING
8
5
4
2
9
1
6
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8605253

VALVE

Priority; Incl. 1 - 10

1шт.

87371432

HYDRAULIC VALVE

Incl. 1 - 9; Replaces 8605253

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

4

8605251

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

Spool

1шт.

6

NSS

NOT SOLD SEPARAT

Plug

1шт.

7

8605252

VALVE PRESSURE RELIE

Cartridge

1шт.

7

87372007

HYDRAULIC VALVE

Cartridge; Use With Valve 87371432

1шт.

8

NSS

NOT SOLD SEPARAT

Adapter

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Boss seal

1шт.
