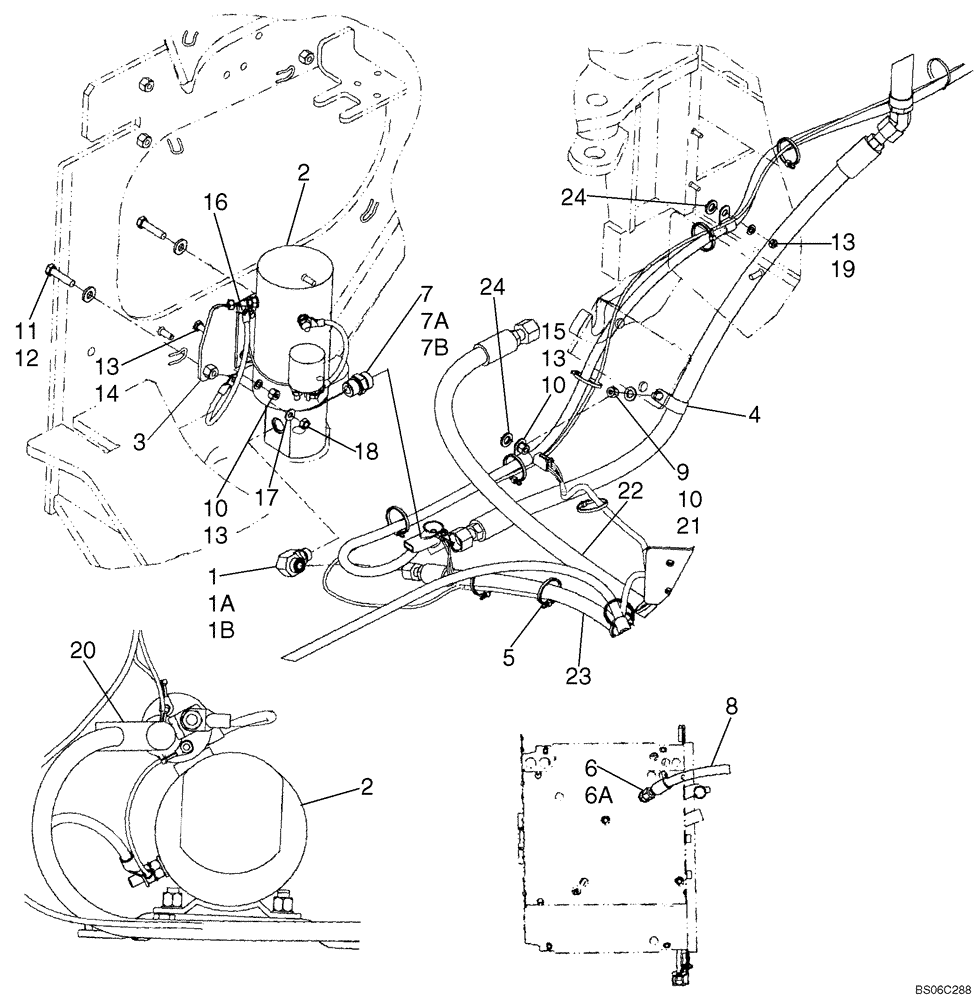

Запчасти Case 621D (05-07C) - HYDRAULICS - STEERING, AUXILIARY - IF USED (05) - STEERING

1

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

2

87581480

ELECTRIC PUMP

Auxiliary Steering; Replaces 380013A1, See Figure 05-09

1шт.

3

87367580

BRACKET

Pump Mounting

1шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

(30.2mm; M10 Bolt)

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

6

433530A1

ELBOW

45 Deg; 20mm ORFS-3/4" NPT; Incl. 6A

1шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

7

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

20mm ORFS x M27 ORB; Incl. 7A, 7B

1шт.

7a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

87367245

HOSE ASSY.

Aux Steering Suction; 1065mm ( 42 in )

1шт.

9

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Replaces 895-11012

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

15

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

19mm; M10 Bolt; Replaces 515-25190

1шт.

16

L129707

NEG BATTERY CABLE

1шт.

17

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

18

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

Replaces 829-1408

1шт.

20

L126713

BOOT

Electrical

1шт.

21

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

22

87436049

HOSE ASSY.

Excess Flow

1шт.

23

87436048

HOSE ASSY.

Aux Steering Pressure

1шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
