Запчасти Case 621D (05-07) - HYDRAULICS - STEERING, AUXILIARY (05) - STEERING

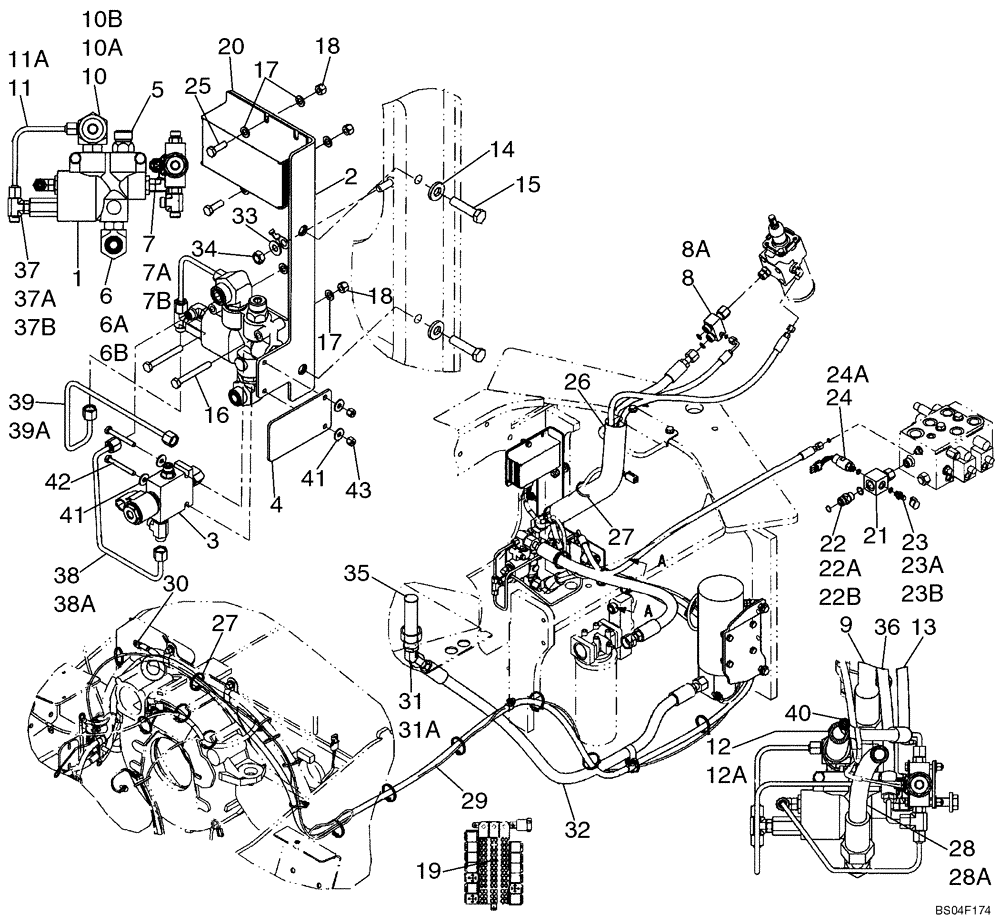

Схема запчастей Case 621D - (05-07) - HYDRAULICS - STEERING, AUXILIARY (05) - STEERING
26
22
11
38
22a
9
23a
16
6
2
25
36
41
1
17
41
19
22b
28a
18
7
4
13
10b
3
40
8
11a
31a
7b
23b
24
39
28
38a
8a
37a
23
37b
6b
12a
31
34
27
15
20
32
18
37
29
24a
12
7a
33
14
27
21
43
35
17
39a
5
10a
10
42
6a
30

Артикул

Название

Примечание

Количество

1

8605253

VALVE

See Figure 05-08

1шт.

2

87403156

BRACKET

Valve Mounting

1шт.

3

445471A1

VALVE

Auxiliary Steering Solenoid

1шт.

4

87403158

SHIELD

Solenoid Valve

1шт.

5

392354A1

VALVE, CHECK

Incl. 10, 11

1шт.

6

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 6A, 6B

1шт.

6a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 7A, 7B

2шт.

7a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

376636A1

FITTING

Incl. 8A

1шт.

8a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

9

87534129

HOSE ASSY.

1025mm ( 40-1/3 in ); Controlled Flow; Replaces 376633A2

1шт.

10

376794A1

FITTING

Incl. 10A, 10B

1шт.

10a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

11

376795A2

TUBE,6.35 mm OD, 89, 79 mm Length

Aux Tank; Not Illustrated; Replaced By 87451265

1шт.

11a

87451265

TUBE,6.35 mm OD x 91, 82 mm L

Aux Tank; Replaces 376795A2

1шт.

12

376798A1

HOSE ASSY.

987 mm (38-7/8 in ); Priority Valve To Filter; Not Illustrated; Replaced By 87436049

1шт.

12a

87436049

HOSE ASSY.

940mm (37 in ); Priority Valve To Filter; Replaces 376798A1

1шт.

13

86983327

HOSE

1096 mm ( 43-3/16 in ); Pressure Switch

1шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

15

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

16

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

19

A149799

FUSE

7.5 Amp; Brown

1шт.

20

8603171

MODULE

Secondary Steering

1шт.

21

400242A1

FITTING

Aux Steering Switch

1шт.

22

376970A1

VALVE, CHECK

Incl. 22A, 22B

1шт.

22a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

22b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

23

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. 23A, 23B

1шт.

23a

143349A1

DUST CAP

1шт.

23b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

24

398888A1

PRESSURE SWITCH

Aux Pressure; Incl. 24A

1шт.

24a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

1шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

28

407920A1

HOSE ASSY.

812 mm (32 in ); Pressure; Not Illustrated; Replaced By 87436048

1шт.

28a

87436048

HOSE ASSY.

755 mm ( 29-3/4 in ); Pressure; Replaces 407920A1

1шт.

29

445784A1

HARNESS

Secondary Steering Module

1шт.

30

87409336

ELECTRIC CABLE

Block To Auxiliary Steering

1шт.

31

433530A1

ELBOW

45 deg, 20mm ORFS; Incl. 31A

1шт.

31a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

32

407911A1

HOSE ASSY.

Aux Steering Suction; 1315mm ( 51-7/8 in )

1шт.

33

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

1шт.

34

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

35

L129303

FILTER SCREEN

Hydraulic Tank Screen

1шт.

36

435828A1

HOSE ASSY.

1317 mm ( 51-7/8 in ); Auxiliary Load Sense

1шт.

37

700-413

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 37A, 37B

1шт.

37a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

37b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

38

440932A1

TUBE

Load Sensing; Not Illusdtrated; Replaced By 87451269

1шт.

38a

87451269

TUBE,6.35 mm OD

Load Sensing; Replaces 440932A1

1шт.

39

440925A1

TUBE

Auxiliary Steering Tank; Not Illustrated; Replaced By 87451267

1шт.

39a

87451267

TUBE,6.35 mm OD

Auxiliary Steering Tank; Replaces 440925A1

1шт.

40

437596A1

HOSE ASSY.

1461 mm ( 57-1/2 in ); Steering; Load Sensing

1шт.

41

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

42

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

43

832-10406

NUT,M6 x 1, Cl 8

2шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 63
