Запчасти Case 621D (05-05A) - HYDRAULICS - STEERING - CYLINDER - IF USED (05) - STEERING

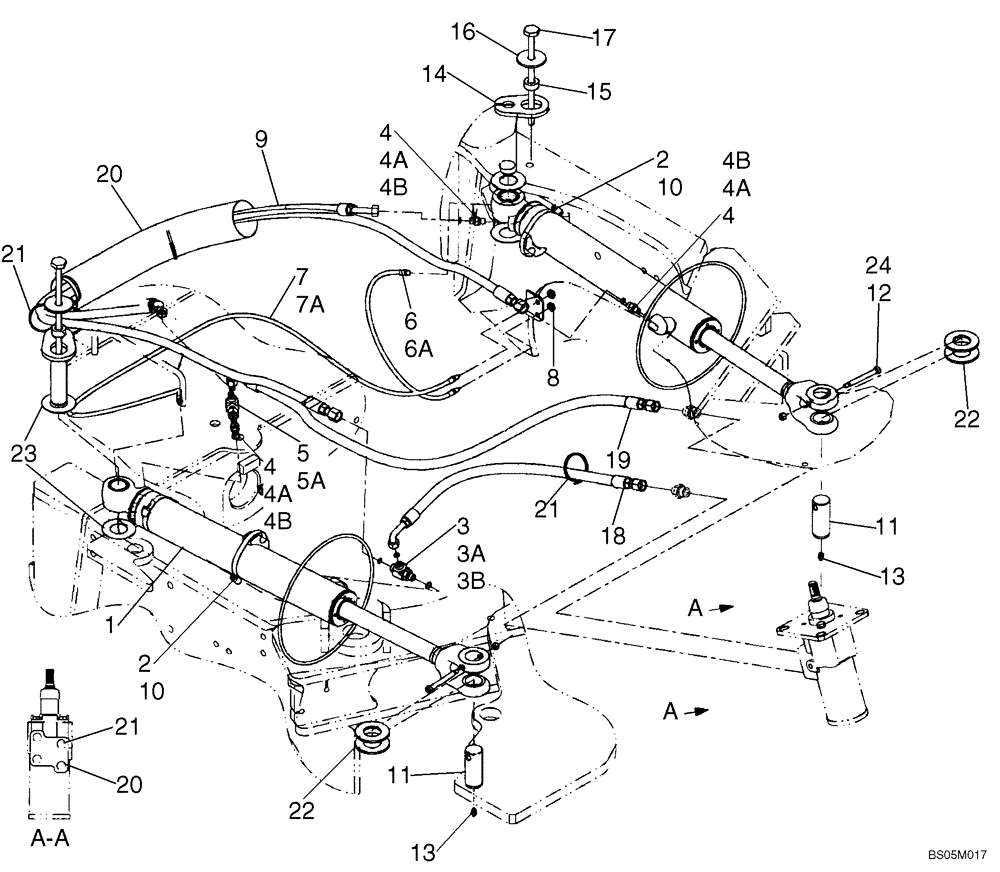

Схема запчастей Case 621D - (05-05A) - HYDRAULICS - STEERING - CYLINDER - IF USED (05) - STEERING
18
16
21
4a
3
12
4a
20
4
9
11
7
1
13
14
10
10
11
4a
4
20
4
4b
22
5a
21
23
4b
22
13
7a
19
3a
15
17
2
8
5
4b
21
3b
24
6
2
6a

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

STEERING CONTROL VALVE TO CYLINDERS; IF USED

1шт.

1

87405377

STEERING CYLINDER

70 ID x 463 strk; Steering; See Figure 05-10

2шт.

1

87405377R

REMAN-HYD CYLINDER

621D CASE WHEEL LOADER - NA (S/N JEE0135501 & AFTER), 70 ID x 463 strk, Steering (1/03-)

2шт.

1

87405377C

CORE-HYD CYLINDER

Return Number

2шт.

2

367533A1

CLAMP

Hose; Black

3шт.

3

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

ADJ ORFS 10mm - M16 - 10mm; Incl.3A, 3B

1шт.

3a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

3b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 4A, 4B

3шт.

4a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 5A

1шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

6

L54693

HOSE

686 mm (21 in); Incl. 6A

1шт.

6a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

7

L72667

HOSE

1041 mm (41 in); Incl. 7A

1шт.

7a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

9

387207A1

HOSE ASSY.

2143mm (84-3/8 in); Left Hand Cylinder

2шт.

10

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

3шт.

11

380583A2

PIN

Zinc Plated

2шт.

12

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

BOLT Shoulder; M8 x 80; 12.9

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

87369338

PIN,35.05mm OD x 180.5mm L

PIN Steering Pivot; Zinc Plated

2шт.

15

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

2шт.

16

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

17

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

18

365836A3

HOSE ASSY.

745 mm (29-5/16 in); Right

1шт.

19

365837A2

HOSE ASSY.

Left

1шт.

20

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

22

419819A1

WASHER

39 x 76 x 4,5 mm

4шт.

23

419818A1

WASHER

39 x 76 x 1,5 mm

4шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

Выбрано товаров: 34
