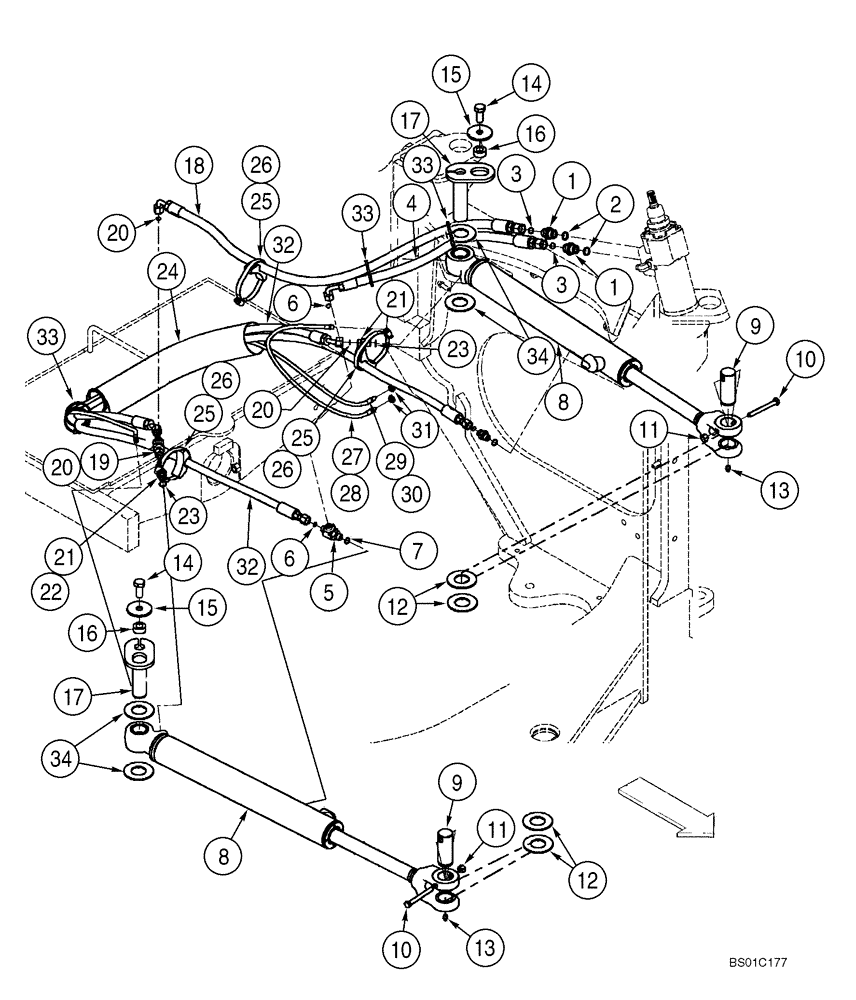

Запчасти Case 621D (05-05) - HYDRAULICS - STEERING - CYLINDER (05) - STEERING

REF

INSTRUCTION

STEERING CONTROL VALVE TO CYLINDERS

1шт.

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 2, 3

2шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

365836A3

HOSE ASSY.

745 mm (29-5/16 in); Right

1шт.

5

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 6, 7

1шт.

6

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

8

87405377

STEERING CYLINDER

70 ID x 463 strk; Steering; See Figure 05-10

2шт.

8

87405377R

REMAN-HYD CYLINDER

621D CASE WHEEL LOADER - NA (S/N JEE0135501 & AFTER), 70 ID x 463 strk, Steering (1/03-)

2шт.

8

87405377C

CORE-HYD CYLINDER

Return Number

2шт.

9

380583A2

PIN

2шт.

10

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

If Used

2шт.

10

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

M8 x 80 Shoulder; 12.9; If Used

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

If Used

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

If Used

2шт.

12

419819A1

WASHER

39 x 76 x 4,5 mm

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

15

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

17

87403344

PIN ASSY.

2шт.

18

365837A2

HOSE ASSY.

Left

1шт.

19

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 20

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

21

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 22, 23

3шт.

22

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

24

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

25

367533A1

CLAMP

3шт.

26

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

3шт.

27

L54693

HOSE

686 mm (21 in); Incl. 28

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

L72667

HOSE

1041 mm (41 in); Incl. 30

1шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

31

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

32

387207A1

HOSE ASSY.

2143mm (84-3/8 in); Left Hand Cylinder

2шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

6шт.

34

419818A1

WASHER

39 x 76 x 1,5 mm

4шт.
