Запчасти Case 621D (05-04) - HYDRAULICS - STEERING (05) - STEERING

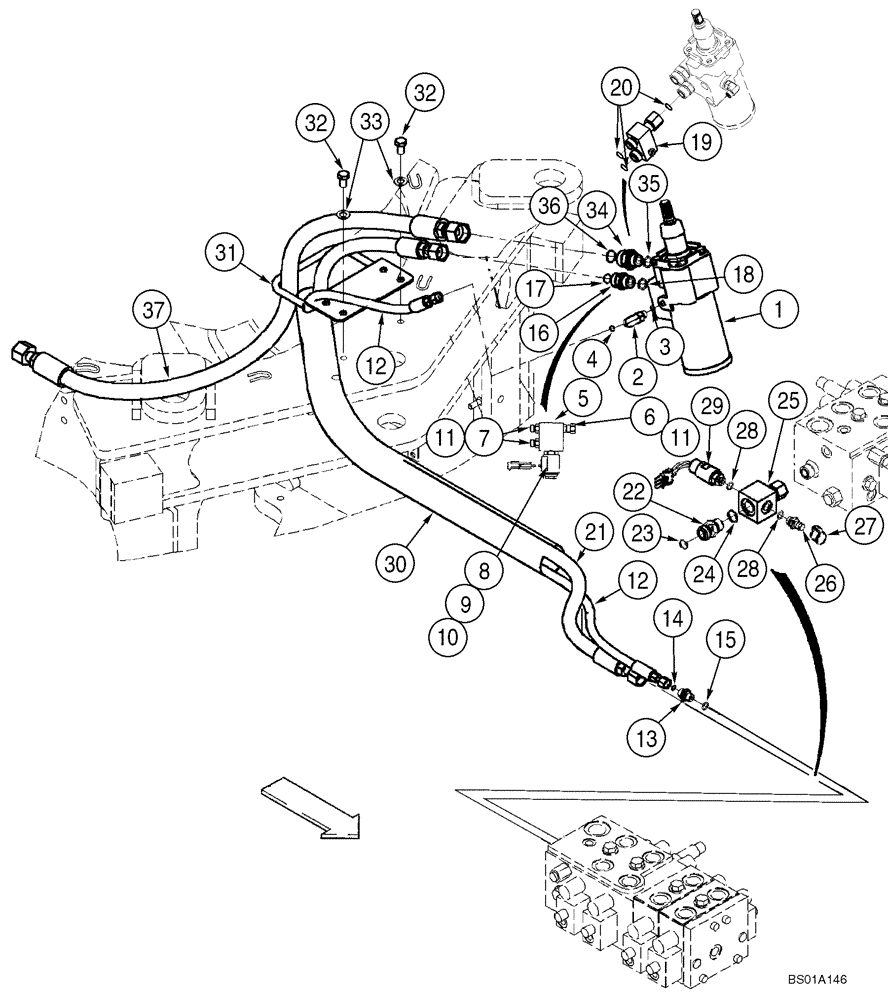

Схема запчастей Case 621D - (05-04) - HYDRAULICS - STEERING (05) - STEERING
12
5
11
28
6
27
9
12
26
29
35
37
23
3
28
20
30
31
17
7
32
4
15
8
33
19
25
14
2
1
34
11
10
18
21
32
36
13
24
22
16

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

STEERING PRESSURE AND RETURN

1шт.

REF

INSTRUCTION

AUXILIARY STEERING

1шт.

1

87405438

CONTROL VALVE

Steering; See Figure 05-02

1шт.

1

87307054

HYDRAULIC VALVE

Replaces 87405439

1шт.

2

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 3, 4

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

411113A1

SOLENOID VALVE

Incl. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

412258A1

FITTING

1шт.

7

412257A1

FITTING

2шт.

8

408619A1

COIL

1шт.

9

412256A1

VALVE POPPET

1шт.

10

329413A1

SEAL KIT

Not Illustrated

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss seal

3шт.

12

437596A1

HOSE ASSY.

1461 mm; Steering Load Sense

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 14, 15

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 17, 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

19

376636A1

FITTING

Incl. 20

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

3шт.

21

408877A1

HOSE ASSY.

1673 mm; Steering Pressure

1шт.

22

376970A1

VALVE, CHECK

Incl. 23, 24

1шт.

23

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

25

400242A1

FITTING

Auxiliary Steering Switch

1шт.

26

178889A1

DIAGNOSTIC COUPLER

Incl. 27, 28

1шт.

27

143349A1

DUST CAP

1шт.

28

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

29

398888A1

PRESSURE SWITCH

Pressure

1шт.

30

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

31

87400278

RETAINER

Retainer Bracket

1шт.

32

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

33

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

34

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 35, 36

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

36

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

37

365751A2

HOSE ASSY.

1142 mm; Steering Return

1шт.

37

87319752

HOSE ASSY.

1142mm ( 45 in ); Replaces 365751A2

1шт.

87307518

VALVE, CHECK

Used With 87319752; Not Illustrated

1шт.
