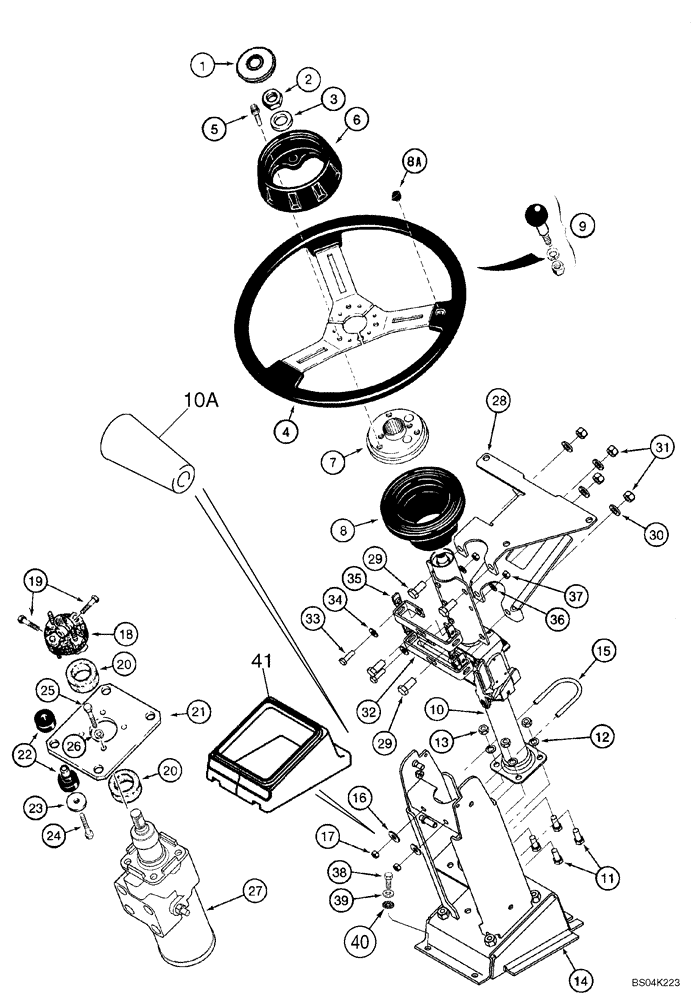

Запчасти Case 621D (05-01) - STEERING WHEEL - COLUMN (05) - STEERING

1

384985A1

CAP

Incl. 1A

1шт.

1a

1342054C1

PLASTIC PLUG

Not Illustrated

1шт.

2

NSS

NOT SOLD SEPARAT

M14, Nut

1шт.

3

895-11014

WASHER,M14 x 28 x 2.5

1шт.

283484A1

STEERING WHEEL

Incl. 4 - 8A

1шт.

4

D147465

STEERING WHEEL

Not Serviced Separately; Order 283484A1; See Below

1шт.

283484A1

STEERING WHEEL

Incl. Spacer Ring, Wheel Hub, Bolt, Washers and Wheel; Not Illustrated; Replaces D148204

1шт.

5

NSS

NOT SOLD SEPARAT

Bolt

3шт.

6

NSS

NOT SOLD SEPARAT

Cap

1шт.

7

329105A1

HUB

1шт.

8

S301400

BOOT

1шт.

8a

NSS

NOT SOLD SEPARAT

Plug; Remote To Use Spinner Knob

1шт.

9

L127996

KNOB

Spinner; Includes Washer and Nut

1шт.

10

226107A3

STEERING COLUMN

Assy, Tilt, Incl 2

1шт.

10

318942A1

REPAIR KIT

Locking, Tilt

1шт.

10

339490A1

REPAIR KIT

Spring

1шт.

10

339499A1

REPAIR KIT

Lever

1шт.

10

339500A1

REPAIR KIT

Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

Column, Steering; Housing; Shaft

1шт.

10a

283095A2

BALL KNOB

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

251715A4

SUPPORT

1шт.

15

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

1шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

L100096

ISOLATOR

1шт.

19

7807271

SCREW,3/8" - 24 x 1.22"

3/8 x 1-1/4

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

2шт.

21

237344A2

PLATE

1шт.

22

A141515

ISOLATOR

4шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

24

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

87405439

CONTROL VALVE

Steering; See Figure 05-02

1шт.

27

87307054

HYDRAULIC VALVE

Replaces 87405439

1шт.

28

251730A4

PLATE

Instrument Cluster

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

31

829-1412

NUT,M12, Cl 10.9

4шт.

32

251725A3

BRACKET

2шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

35

833-40306

SPRING NUT,M6, U

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

If used

4шт.

39

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

If Used

6шт.

40

893-11010

LOCK WASHER,Ext Tooth, M10

If used

4шт.

25

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

41

234004A1

BOOT

1шт.
