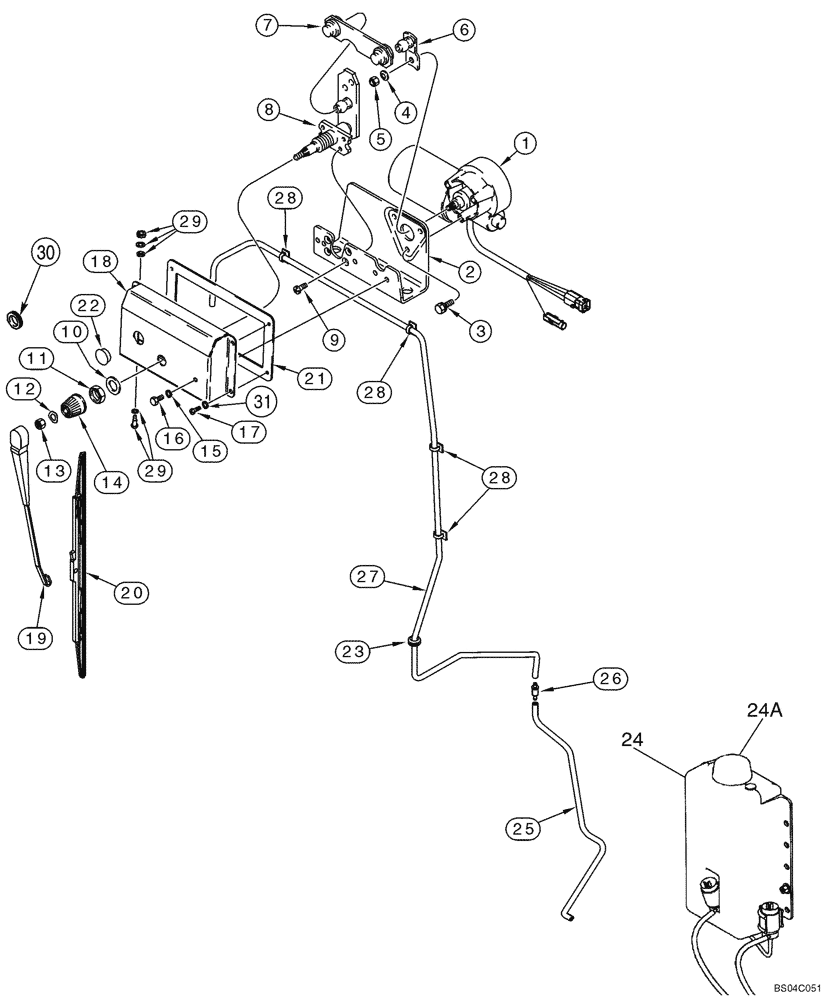

Запчасти Case 621D (04-27A) - CAB - WIPER, REAR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
413378A1
WIPER MOTOR
MOTOR, WIPER 24 volt; Incl. 1 - 14
1шт.
1
87408552
WIPER MOTOR
24 volt; Windshield Wiper; Rear; Replaces 431823A1
1шт.
87408553
KIT
Hardware; Incl. 10, 11, 13, 14
1шт.
2
NSS
NOT SOLD SEPARAT
Bracket
1шт.
3
NSS
NOT SOLD SEPARAT
Screw, Special
3шт.
4
NSS
NOT SOLD SEPARAT
Washer, Special, Retaining
1шт.
5
NSS
NOT SOLD SEPARAT
Nut, Special
1шт.
6
NSS
NOT SOLD SEPARAT
Arm, Wiper
1шт.
7
413824A1
LINK
1шт.
8
NSS
NOT SOLD SEPARAT
Shaft
1шт.
9
NSS
NOT SOLD SEPARAT
Screw, Special
4шт.
10
L112088
WASHER
Shaft
1шт.
11
L112087
NUT
Shaft
1шт.
12
L112089
WASHER
1шт.
13
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
1шт.
14
L112081
CAP
1шт.
15
892-11006
LOCK WASHER,M6
5шт.
16
627-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd
1шт.
17
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
4шт.
18
324869A2
COVER
Rear Wiper
1шт.
19
A187712
WIPER ARM,Single, 500mm L
ARM, WIPER Windshield Wiper Rear; Replaced By 87319296
1шт.
19
87319296
WIPER ARM
ARM, WIPER Windshield Wiper Rear
1шт.
20
132024A1
WIPER BLADE
Replaced By 87319297
1шт.
20
87319297
WIPER BLADE,Single, 500mm L
Blade; 500mm (19-1/2 in)
1шт.
21
1345074C1
GASKET,5mm Thk
1шт.
22
353-411
PLUG,Dome, 1.000" hole, Nylon
1шт.
23
248-1169
GROMMET,3/8" ID x 5/8" Groove Dia
1шт.
24
371185A1
RESERVOIR, WINDSHIEL,4.75L
Windshield Washer; Front And Rear; See Figure 04-27 For Mounting Hardware; Incl. Pump and 24a
1шт.
24
48042633
PUMP,24V
2шт.
24a
87439461
CAP
Vented With Tether
1шт.
25
8500662
HOSE WASHER
2540 mm (100 in); Reservoir To Check Valve; Cut From 4-1056T1
1шт.
26
324203A1
CHECK VALVE
1шт.
27
324469A1
HOSE
3073 mm (121 in); Windshield Washer; Rear; Cut From 4-1056T1
1шт.
28
L100659
CLIP
4шт.
29
324550A1
JET
Windshield Washer; Rear
1шт.
30
248-1237
GROMMET,1/4" ID x 1" Groove Dia, Diag Cut
1шт.
31
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP Not Illustrated
1шт.
Выбрано товаров: 37
