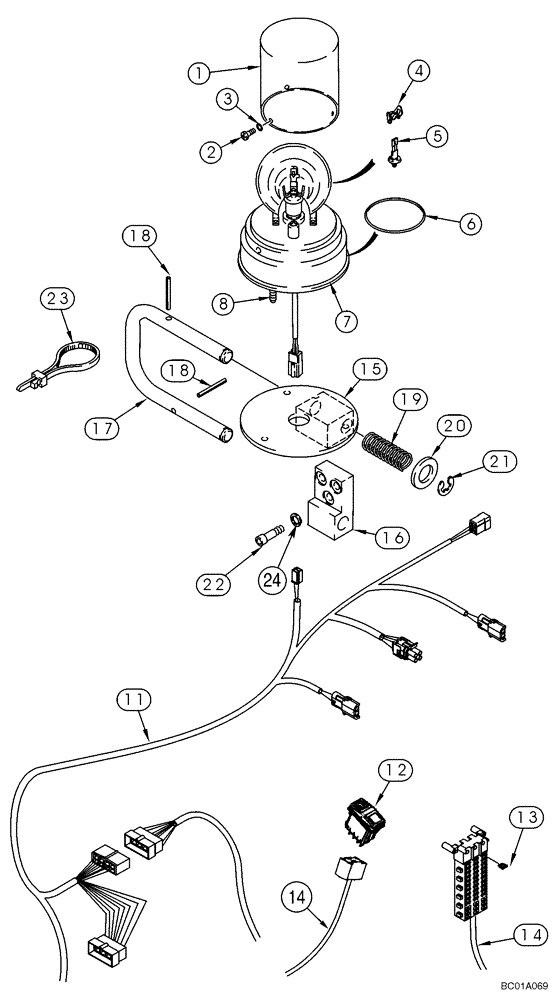

Запчасти Case 621D (04-24) - BEACON ASSY, ROTATING - MOUNTING (04) - ELECTRICAL SYSTEMS

367751A1

BEACON ROTATING

Beacon; Incl. 1 - 8

1шт.

1

192809A1

LENS

Amber

1шт.

1

87400956

LENS

Blue

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

P40533

LAMP

24V; Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

Base; Incl. Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

11

238764A2

WIRE HARNESS

Cab Roof

1шт.

12

374430A2

BEACON SWITCH

Rotating Beacon

1шт.

13

A149799

FUSE

7,5 amp

1шт.

14

8501182

WIRE HARNESS

Cab Main

1шт.

15

313215A2

BRACKET

Beacon Mounting

1шт.

16

313213A3

BRACKET

Beacon Mounting; At Cab

1шт.

17

313216A2

ARM

Beacon Mounting

1шт.

18

38-31620

PIN,6.35mm OD x 31.75mm L

2шт.

19

373596A1

SPRING

Return

2шт.

20

495-11081

WASHER,3/4", SAE

2шт.

21

100-3375

SNAP RING,#75, .574" Dia, E-Type

2шт.

22

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

24

892-11008

LOCK WASHER,8mm ID

3шт.
