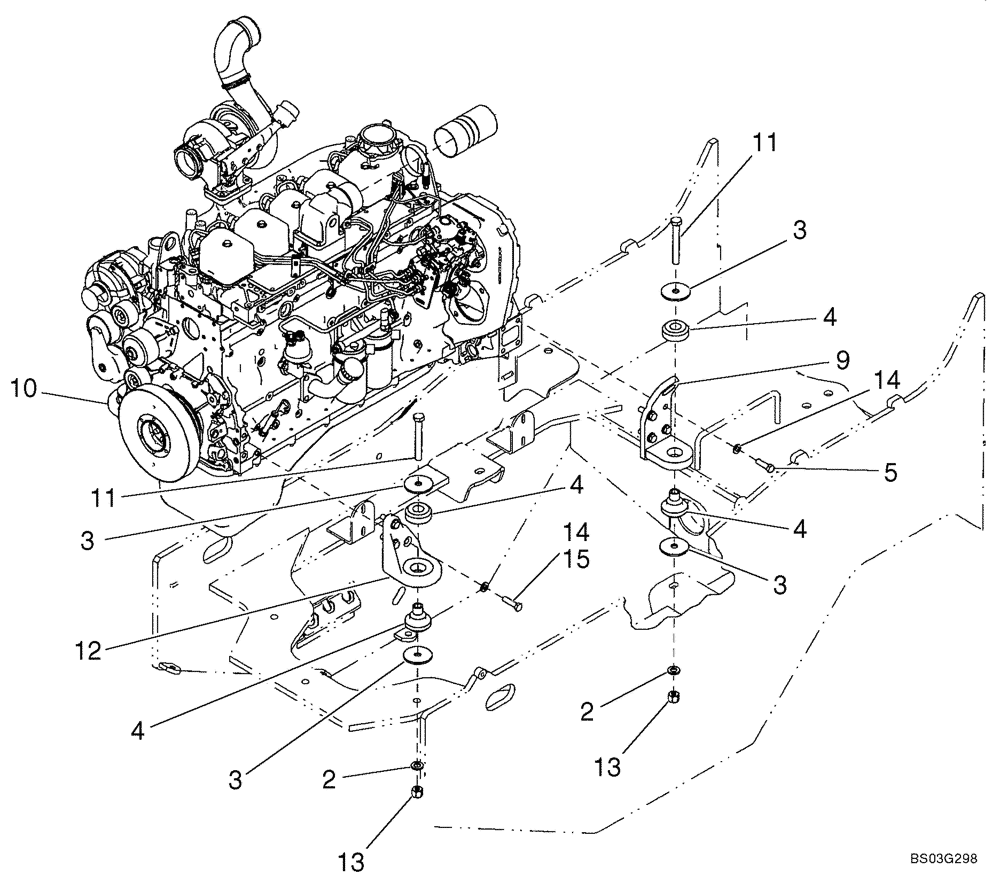

Запчасти Case 621D (02-01) - MOUNT, ENGINE (02) - ENGINE

86988697

ENGINE

6.8L, Incl. Starter, Alternator, Turbocharger, and Fuel Injection System

1шт.

86988697R

REMAN-REPLACEMENT EN,6.8L, 6 Cylinders, W/ Turbocharger

6.8L, Incl. Alternator, Turbocharger, and Fuel Injection System

1шт.

86988697C

CORE-REPLACEMENT ENG

Return Number

1шт.

84284131R

REMAN-BASIC ENGINE,6 Cylinders, W/ Turbocharger

6.8L, Less Starter, Alternator, Turbocharger, and Fuel Injection System

1шт.

84284131C

CORE-BASIC ENGINE

Return Number

1шт.

73329255

REMAN-LONG BLOCK,Long Block - NEF - Tier 2

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

3

227809A1

WASHER

No Longer Used; Order 496-81025

4шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

4

361811A1

ISOLATOR

Rear

4шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

9

86990587

BRACKET

Flywheel Housing

1шт.

10

8602304

ENGINE MOUNT

Rear Left

1шт.

11

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

12

8602303

ENGINE MOUNT

Rear Right

1шт.

13

832-10416

NUT,M16 x 2, Cl 8

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

15

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

87402787

SUPPORT

Front Engine; No Longer Used; Not Illustrated

1шт.

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

No Longer Used; Not Illustrated

4шт.

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

Not Illustrated

4шт.
