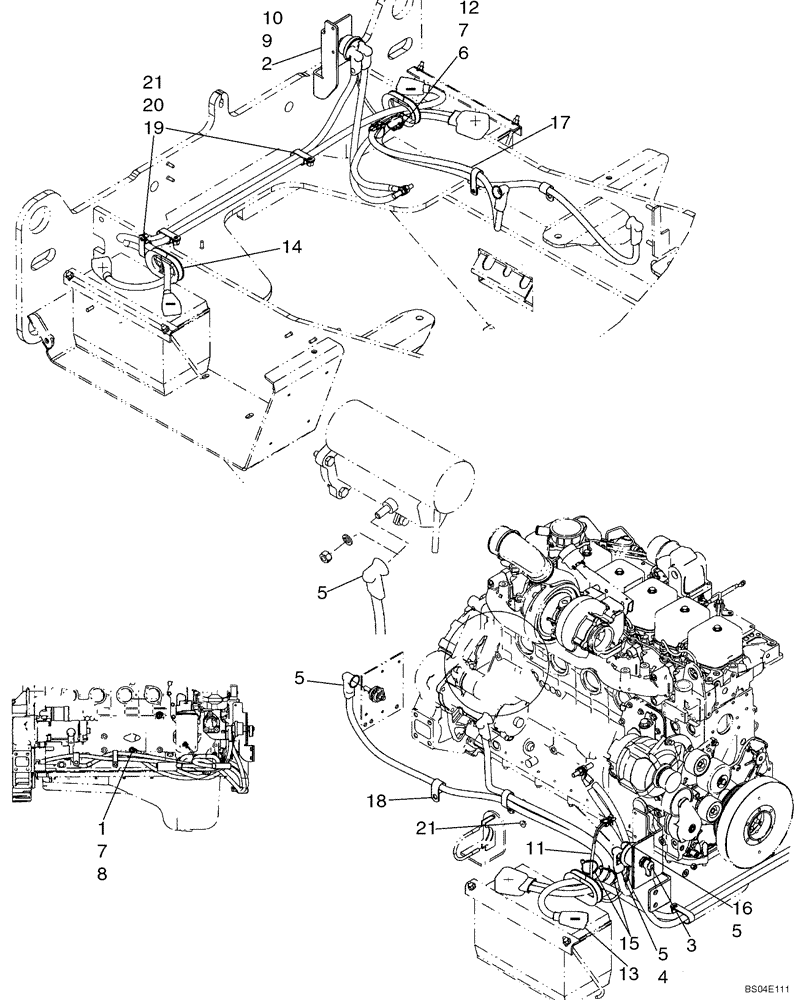

Запчасти Case 621D (04-20A) - BATTERY - CABLES - DENSO STARTER - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

USE WITH DENSO STARTER

1шт.

1

L127553

STUD

1шт.

2

8602936

PLATE

Master Disconnect

1шт.

2

87450474

PLATE

Master Disconnect; Black

1шт.

3

L126256

SWITCH

1шт.

4

368091A2

CABLE

Ground

1шт.

5

L126713

BOOT

4шт.

6

383371A1

CABLE

Ground; Engine Block

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

8

L127555

NUT,Hex, 3/8" - 16

3/8-16; Brass

1шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 16 x 1.6 mm

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

L127676

WIRE HARNESS

Disconnect

1шт.

12

253347A1

NUT,Hex, M10 x 1.5

Brass

1шт.

13

87403980

ELECTRIC CABLE

Crossover

1шт.

14

398771A1

CONDUIT

Battery Cable

2шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

16

87403981

NEG BATTERY CABLE

Negative

1шт.

17

87439018

CABLE

Battery to Starter And Relay

1шт.

18

515-25254

CLAMP,1", Insul, 1/2" Bolt

(25.4 mm; M12 Bolt)

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

21

R54363

CLAMP

Double

4шт.
