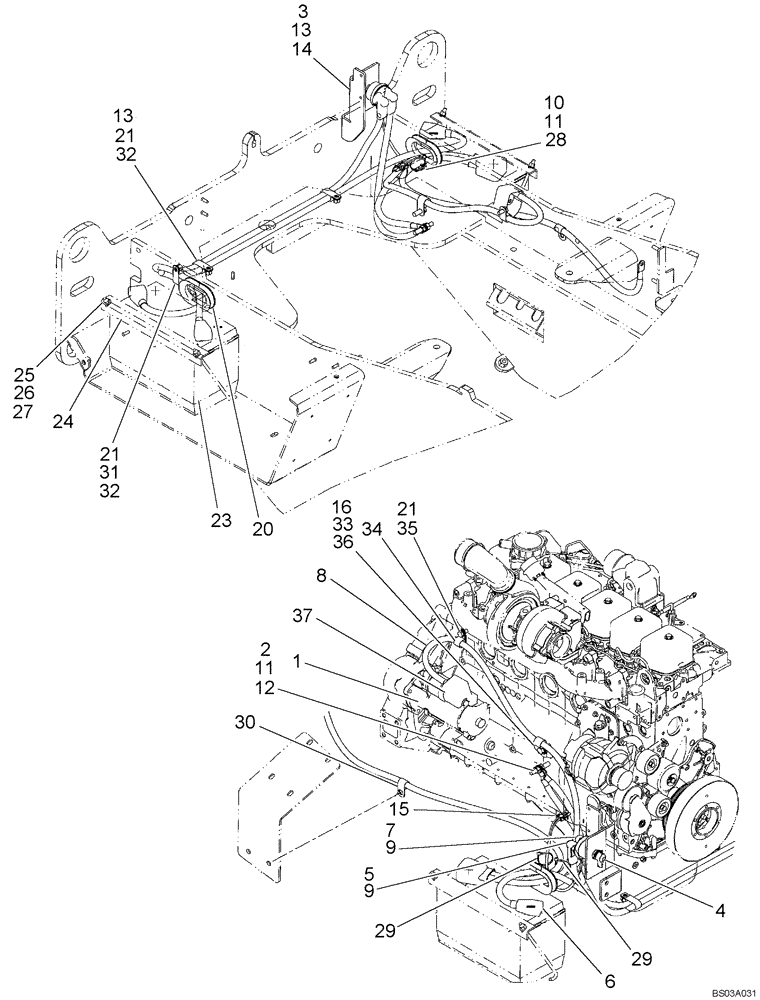

Запчасти Case 621D (04-20) - BATTERY - CABLES - BOSCH STARTER (04) - ELECTRICAL SYSTEMS

1

332443A1

STARTING MOTOR

1шт.

2

L127553

STUD

1шт.

3

8602936

PLATE

Master Disconnect

1шт.

4

L126256

SWITCH

1шт.

5

368091A2

CABLE

Ground

1шт.

6

87403980

ELECTRIC CABLE

Crossover

1шт.

7

87403981

NEG BATTERY CABLE

Negative

1шт.

8

8602939

ELECTRIC CABLE

Positive

1шт.

9

L126713

BOOT

2шт.

10

383371A1

CABLE

Ground; Engine Block

1шт.

11

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

12

L127555

NUT,Hex, 3/8" - 16

3/8

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

L127676

WIRE HARNESS

Disconnect

1шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

20

398771A1

CONDUIT

Battery Cable

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

23

BMF31EW

WET BATTERY

For Case US Only

2шт.

23

CCMF31EW

WET BATTERY

For Case Canada Only

2шт.

24

365191A1

STRAP

2шт.

25

365357A1

ROD

Hold Down

4шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

28

253347A1

NUT,Hex, M10 x 1.5

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2шт.

30

515-25254

CLAMP,1", Insul, 1/2" Bolt

(25.4 mm)

1шт.

31

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

32

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

33

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

34

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

35

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

36

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

37

82009428

SEAL KIT

Seal; Solenoid

1шт.
