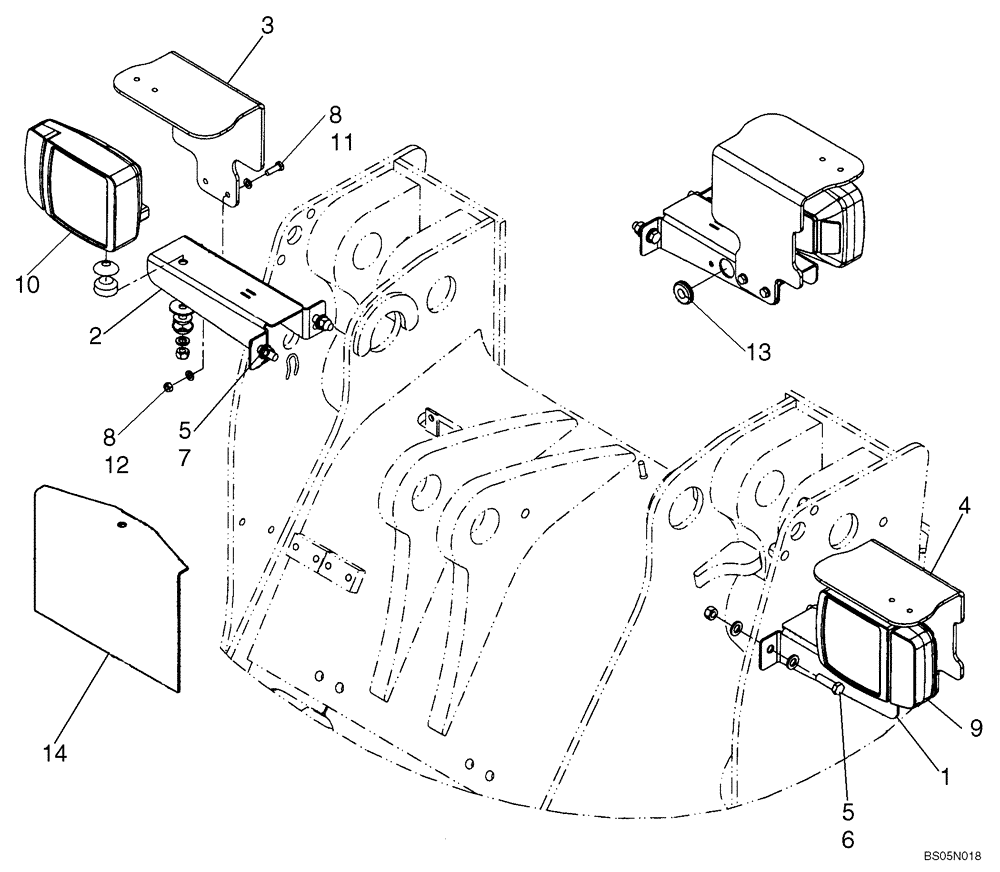

Запчасти Case 621D (04-18A) - MOUNTING - LAMP, FRONT (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

USED WITH FRONT CHASSIS WITH DAMPERS

1шт.

1

87351714

BRACKET

BRACKET Left Hand

1шт.

2

87351705

BRACKET

ARM Right Hand

1шт.

3

87384993

SHIELD

RH

1шт.

4

87351718

SHIELD

LH

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

368056A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Left Hand; Includes Hardware; See Figure 04-19

1шт.

10

368055A1

LIGHT,Halogen, 24V, 70W, Clear

Combination; Right Hand; Includes Hardware; See Figure 04-19

1шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

13

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

14

87383761

PLATE

License Plate Support, Sharp Edges; Use Existing Hardware; No longer used, See Ref. 14A for Service

1шт.

14a

87571546

PLATE

PLATE License Plate Support, Rounded Edges; Use Existing Hardware

1шт.
