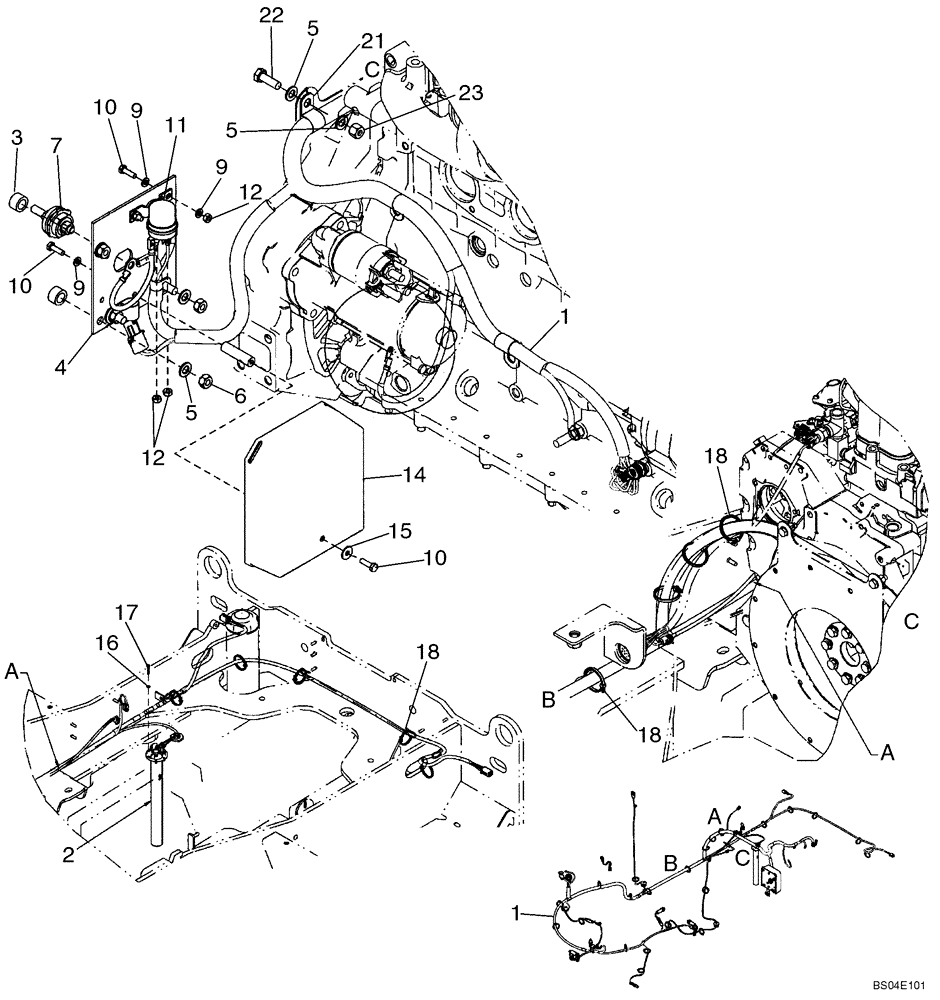

Запчасти Case 621D (04-17A) - HARNESS - REAR CHASSIS - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

SEE FIGURE 04-17B FOR REST OF HARNESS ( 87451629 ) INSTALLATION

1шт.

1

87439015

HARNESS

Used With Denso Starter; If Used

1шт.

1

87451629

WIRE HARNESS

Rear Chassis ; Used With Lights In Grille, Serial Range: -JEE0140243

1шт.

1

87368339

WIRE HARNESS

Rear Chassis ; Used With Rear Chassis Without Dampers, Start Serial: JEE0140244

1шт.

2

328870A1

SENDER UNIT

Fuel Level

1шт.

3

D44696

BUSHING

Spacer 1/2 Pipe x 1/2

2шт.

4

87404991

PLATE

Relay Mounting

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

7

319055A1

JUNCTION BLOCK

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

5шт.

10

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

11

120398A1

RELAY

Starter

1шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

13

253065A1

SPACER

Relay Cover

1шт.

14

L114612

COVER

1шт.

15

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

16

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

17

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

5шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

9шт.

19

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

19mm M10 Bolt

1шт.

20

8602174

WIRE CONNECTOR,8mm, 10 - 6 mm2

Junction Block to Relay

1шт.

21

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

(22.2mm; M10 Bolt)

2шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
