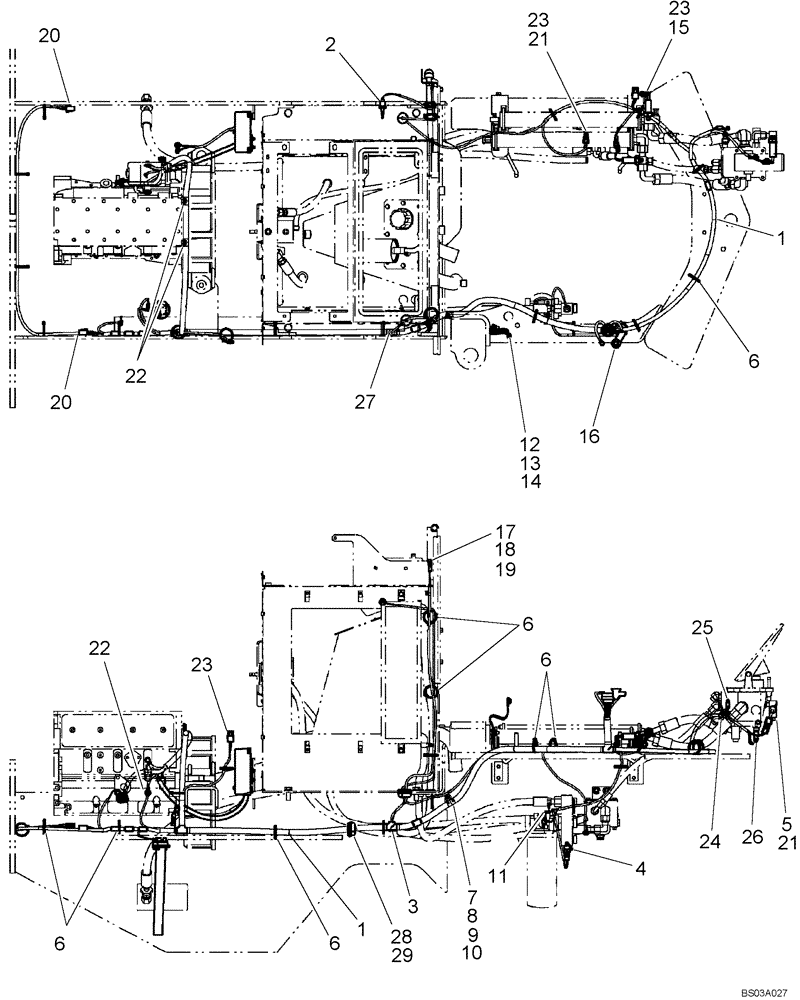

Запчасти Case 621D (04-17) - HARNESS, REAR CHASSIS - IF USED (04) - ELECTRICAL SYSTEMS

1

87404982

HARNESS

Rear Chassis; Replaced by 8605686

1шт.

1

8605686

HARNESS

Replaces 87404982

1шт.

2

419792A2

SENSOR

Coolant Level

1шт.

3

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID

2шт.

4

321446A1

SENSOR

Hydraulic Oil Temperature

1шт.

5

87549589

SWITCH

Brake Declutch; Replaces 377898A3

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

25шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

11

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

Use Existing Hardware

1шт.

12

L126051

GROUND STRAP

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

14

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

2шт.

15

377899A1

SWITCH

Redundant Brake

2шт.

16

L126713

BOOT

1шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

19

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

20

225351C1

ELEC CONNECTOR,Female, 6 Pin

Combination; Left Hand, Right Hand

2шт.

21

245482C1

ELEC CONNECTOR,2 Pin

Solenoid; Fan Reversing; Brake Declutch

2шт.

22

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3/8 ID; Use Existing Hardware

3шт.

23

245483C1

ELEC CONNECTOR,Male, 2 Pin

Solenoid; Ether Start; Fan Reversing; Switch, Redundant Brake

4шт.

24

291718A1

ELEC CONNECTOR,Female, 2 Pin

Solenoid; Parking Brake

1шт.

25

222135A1

CONNECTOR, ELEC

CONNECTOR Pressure Switch; Brake Warning

1шт.

26

222136A1

ELEC CONNECTOR,Male, 2 Pin

Pressure Switch; Brake Light

1шт.

27

245485C1

ELEC CONNECTOR,Male, 3 Pin

Harness, Hood

1шт.

28

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.
