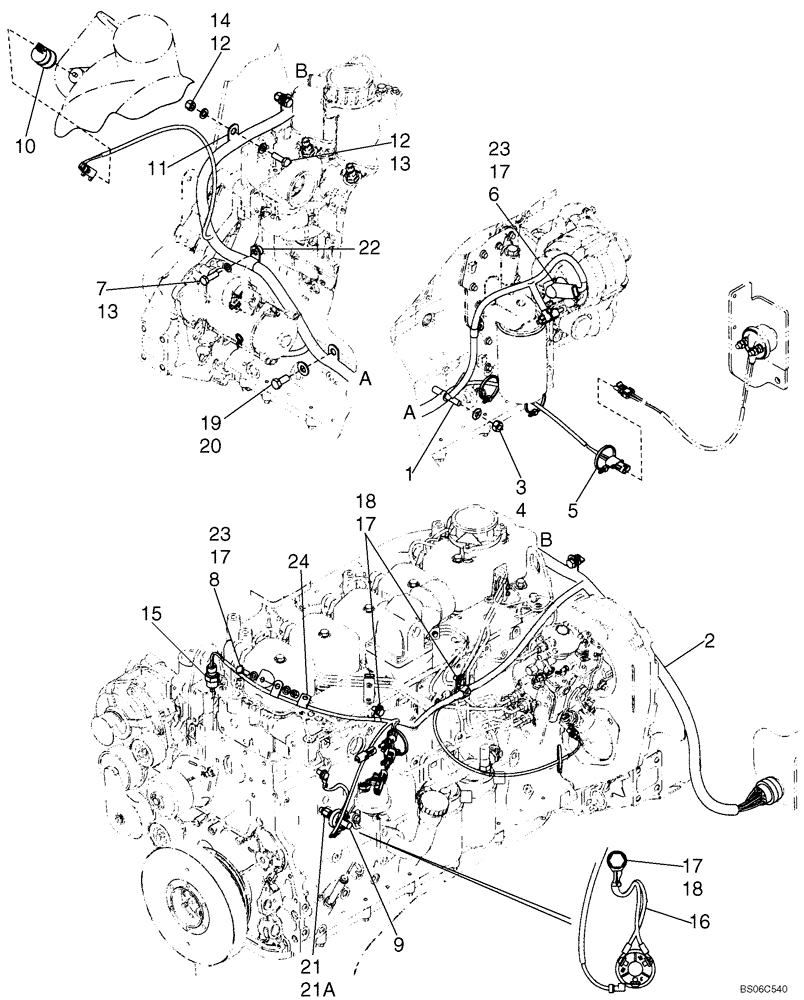

Запчасти Case 621D (04-16A) - HARNESS - ENGINE - IF USED (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITHOUT GRID HEATER

1шт.

1

L127553

STUD

1шт.

2

87404981

WIRE HARNESS

Without Grid Heater

1шт.

3

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

4

L127555

NUT,Hex, 3/8" - 16

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

5шт.

6

399470R1

BOOT

Electrical; Replaces Electrical Boot L126713 Used On Some Models

1шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

9

404224A1

SENDER UNIT

SENDER EOP

1шт.

10

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

11

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

321446A1

SENSOR

Engine Coolant

1шт.

16

8501337

GROUND CABLE

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

19

895-15012

WASHER,M12 x 28 x 2.5

1шт.

20

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

21

250838A2

HYD CONNECTOR

M10 ORB x 1/8 Pipe; Incl. 21A

1шт.

21a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

22

431737A1

SPACER

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

24

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm); 3/8 Bolt

1шт.
