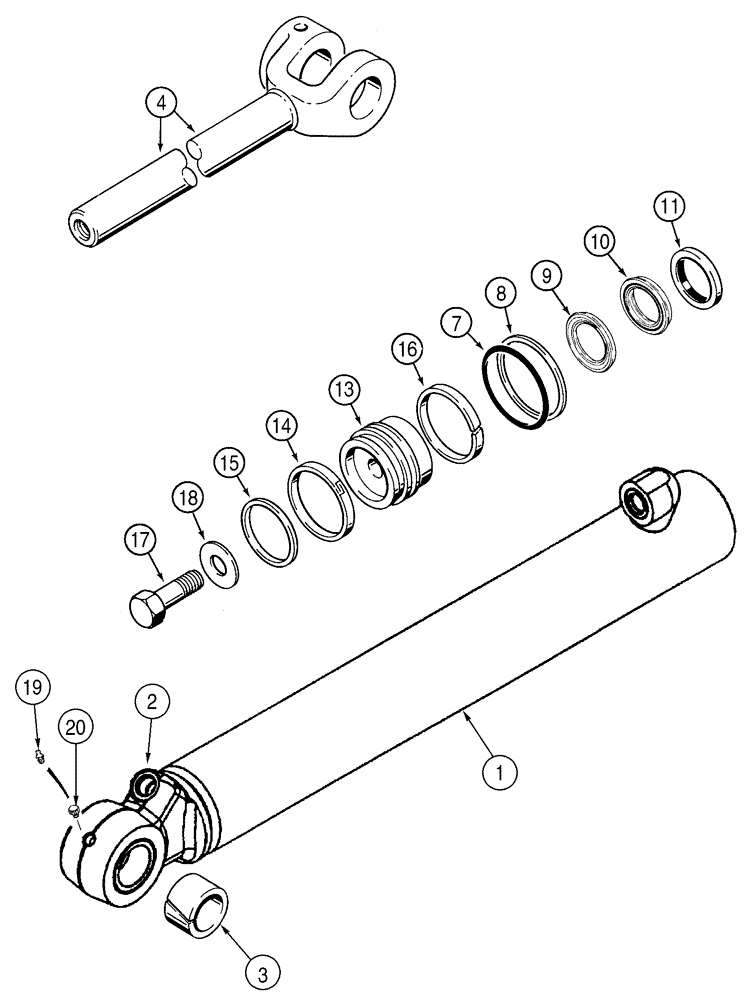

Запчасти Case 621D (05-10) - CYLINDER ASSY - STEERING (05) - STEERING

359186A1

CYLINDER ASSY.

70 ID x 463 strk

2шт.

87405377R

REMAN-HYD CYLINDER

621D CASE WHEEL LOADER (BEFORE S/N JEE0135500), 70 ID x 463 strk, BSN CYLINDER ASSY, Reman for New PN 359186A1

2шт.

87405377C

CORE-HYD CYLINDER

Return Number

2шт.

*

Steering

1шт.

*

Incl. 1 - 20

1шт.

1

359185A1

TUBE,69.82 mm ID, 85.9 mm OD, 663 mm Length

1шт.

*

Incl. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Eye

1шт.

3

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

4

359183A1

ROD ASSY.

1шт.

359120A1

PACKAGE

1шт.

*

Incl. 15 - 18

1шт.

5

349523A1

GLAND

Includes 6 - 12; Not Illustrated

1шт.

6

349522A1

GLAND

Not Illustrated

1шт.

7

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

1542874C1

SEAL KIT,38.1mm Rod

1шт.

*

Incl. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

*

Piston Rod

1шт.

12

352218A1

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

*

Piston Rod

1шт.

*

Not Illustrated

1шт.

349521A1

PISTON ASSY.

1шт.

*

Incl 13 - 16

1шт.

13

349520A1

PISTON

1шт.

14

349519A1

SEAL,66.3mm ID x 71.02mm OD x 6.96mm Thk

1шт.

15

G104439

RING

1шт.

16

349518A1

RING

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

19

219-11

LUBE NIPPLE,1/4" - 28 NPTF

Taper

1шт.

20

553-104

PLUG,M16 x 1.5, ORB, Plastic

1шт.

360987A1

KIT

1шт.

*

Incl. 1542874C1, 7, 8, 11, 12, 14 -16

1шт.
