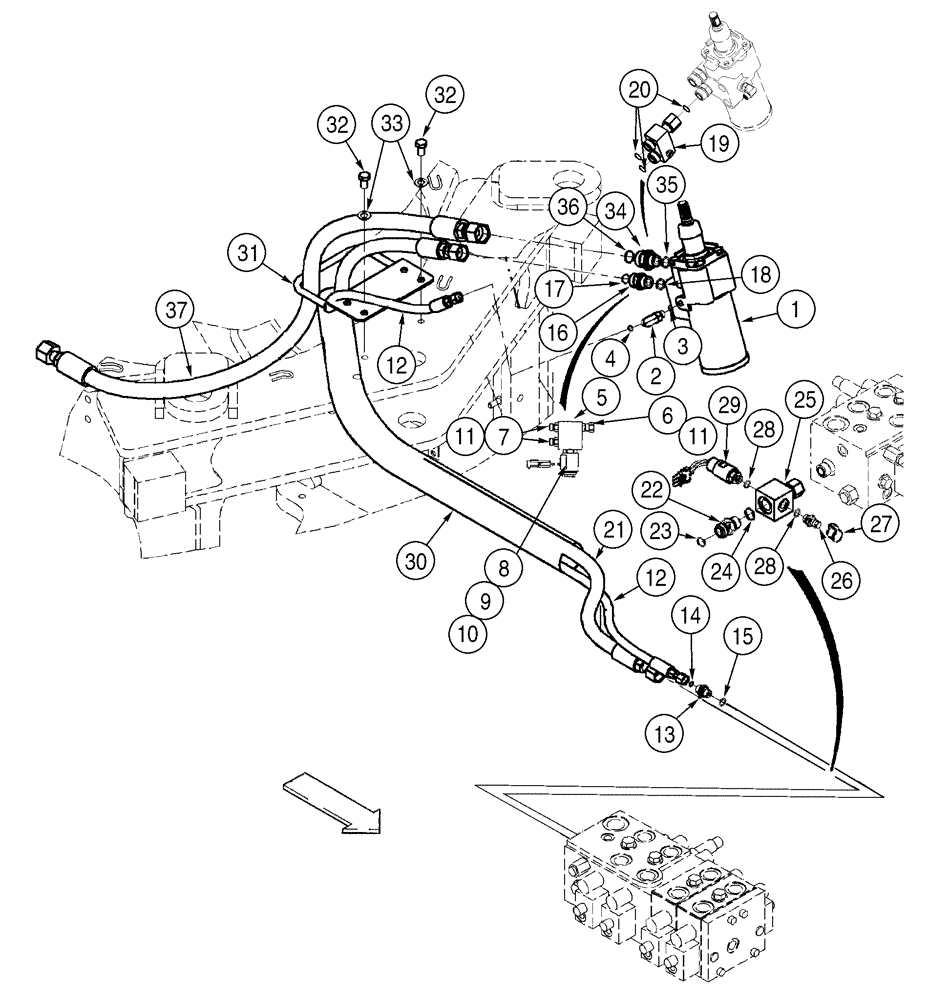

Запчасти Case 621D (05-04) - HYDRAULICS - STEERING, STEERING PRESSURE AND RETURN, AUXILIARY STEERING (05) - STEERING

1

381134A1

CONTROL VALVE

1шт.

Steering

1шт.

See Figure XX-XX

1шт.

2

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

Incl. 3, 4

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

411113A1

SOLENOID VALVE

1шт.

Incl. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

412258A1

FITTING

1шт.

7

412257A1

FITTING

2шт.

8

408619A1

COIL

1шт.

9

412256A1

VALVE POPPET

1шт.

10

329413A1

SEAL KIT

1шт.

Not Illustrated

1шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

Boss End

1шт.

12

408878A1

HOSE ASSY.

1857 mm (73-1/8 in)

1шт.

Steering Load Sense

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb

1шт.

Incl. 14, 15

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

16

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

Incl. 17, 18

1шт.

17

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

19

376636A1

FITTING

1шт.

Incl. 20

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

Face Seal End

1шт.

21

408877A1

HOSE ASSY.

1673 mm (65-7/8 in)

1шт.

Steering Pressure

1шт.

22

376970A1

VALVE, CHECK

1шт.

Incl. 23, 24

1шт.

23

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

25

400242A1

FITTING

1шт.

Auxiliary Steering Switch

1шт.

26

178889A1

DIAGNOSTIC COUPLER

1шт.

Incl. 27, 28

1шт.

27

143349A1

DUST CAP

1шт.

28

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

29

398888A1

PRESSURE SWITCH

1шт.

Pressure

1шт.

30

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

31

406440A2

BRACKET

1шт.

32

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

33

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

34

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

1шт.

Incl. 35, 36

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

36

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

37

387701A1

HOSE ASSY.

1177 mm (46-5/16 in)

1шт.

Steering Return

1шт.
