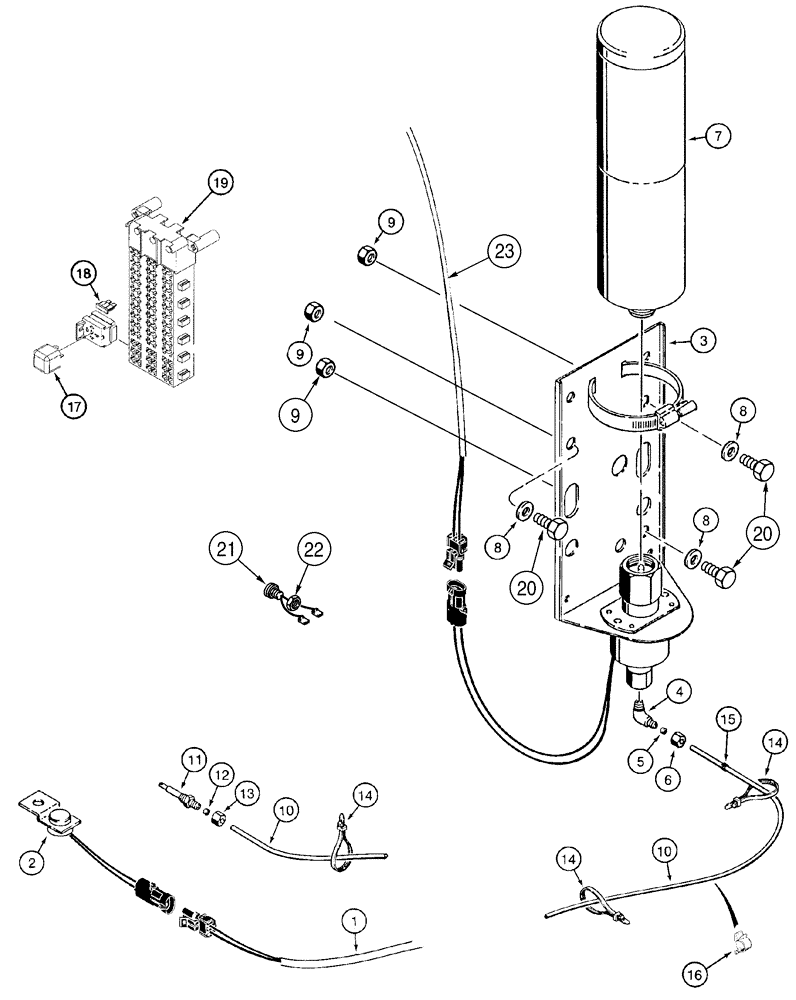

Запчасти Case 621D (04-32) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

389929A2

HARNESS

1шт.

Engine

1шт.

2

L126191

THERMOSTATIC SWITCH

1шт.

Circuit Breaking

1шт.

Use Existing Hardware

1шт.

L126094

VALVE

1шт.

Consists Of 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD

1шт.

Consists Of 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

7

A171940

CYLINDER

1шт.

Starting Fluid

1шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

378304A1

PLASTIC-RUBBER TUBE,0.125" OD

1219 mm (48 in)

1шт.

A172900

NOZZLE CAP

1шт.

Starting Fluid

1шт.

Consists Of 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

248-2331

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

1шт.

17

326845A1

RELAY,24V

24V

1шт.

18

A149800

FUSE,10 Amp

10 amp

1шт.

19

380072A3

HARNESS

1шт.

Cab Main

1шт.

20

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

21

A135520

SWITCH

Cold Start

1шт.

Ether Start

1шт.

22

425-1110

NUT,5/8"-18, G5

1шт.

23

391508A4

HARNESS

Rear Chassis

1шт.
