(04-26) - LAMP ASSY, FRONT AND REAR, CAB OR CANOPY FLOOD LAMPS

Запчасти Case 621D (04-26) - LAMP ASSY, FRONT AND REAR, CAB OR CANOPY FLOOD LAMPS (04) - ELECTRICAL SYSTEMS

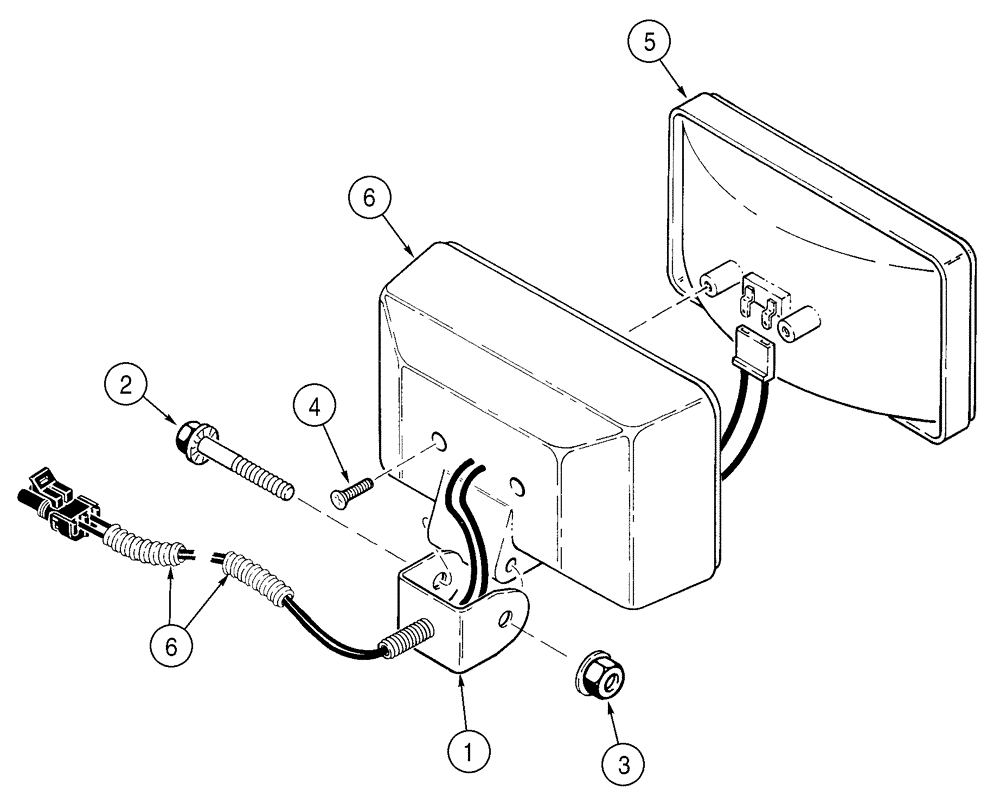

Схема запчастей Case 621D - (04-26) - LAMP ASSY, FRONT AND REAR, CAB OR CANOPY FLOOD LAMPS (04) - ELECTRICAL SYSTEMS
2
1
3
4
6
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A187520

LIGHT ASSY.,24V, 70W, Clear

4шт.

1

A187913

SUPPORT

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

4

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

2шт.

5

103653A1

HEADLIGHT,24V, 60W

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

Housing

1шт.
