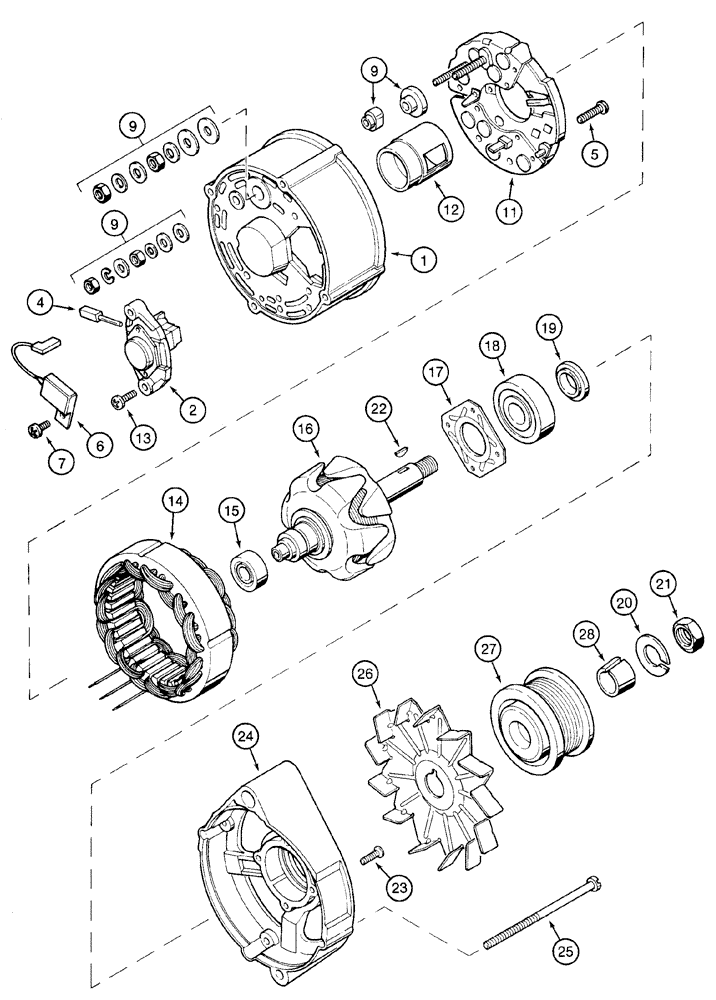

Запчасти Case 621D (04-02) - ALTERNATOR ASSY (04) - ELECTRICAL SYSTEMS

A187916

ALTERNATOR,24V, 45A

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

24V, 45 amp

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

Consists Of 1 - 25

1шт.

1

A187996

HOUSING

1шт.

2

A187998

REGULATOR

1шт.

Incl. 4

1шт.

4

A187999

BRUSH, COMMUTATOR

BRUSH

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

2шт.

6

3079134R1

CAPACITOR

1шт.

7

1964969C1

SCREW

1шт.

9

A187904

MULTIPOLE CONNECTOR

1шт.

11

A187997

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187907

CAPTIVE WASHER SCREW

2шт.

14

A188000

STATOR

1шт.

15

A187908

BALL BEARING,12 mm ID x 32 mm OD x 10 mm

1шт.

16

A187502

ROTOR ASSY.

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

1шт.

3078897R1

SET OF PARTS

1шт.

Consists Of 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A191103

COVER

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

1шт.

Not Included In Assembly

1шт.

27

J908560

PULLEY

1шт.

Not Included In Assembly

1шт.

28

J908563

RETAINER

1шт.

Not Included In Assembly

1шт.
