(03-07) - ANEROID AND WASTEGATE SYSTEM, 6T-590 EMMISSIONS CERTIFIED ENGINE

Запчасти Case 621D (03-07) - ANEROID AND WASTEGATE SYSTEM, 6T-590 EMMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

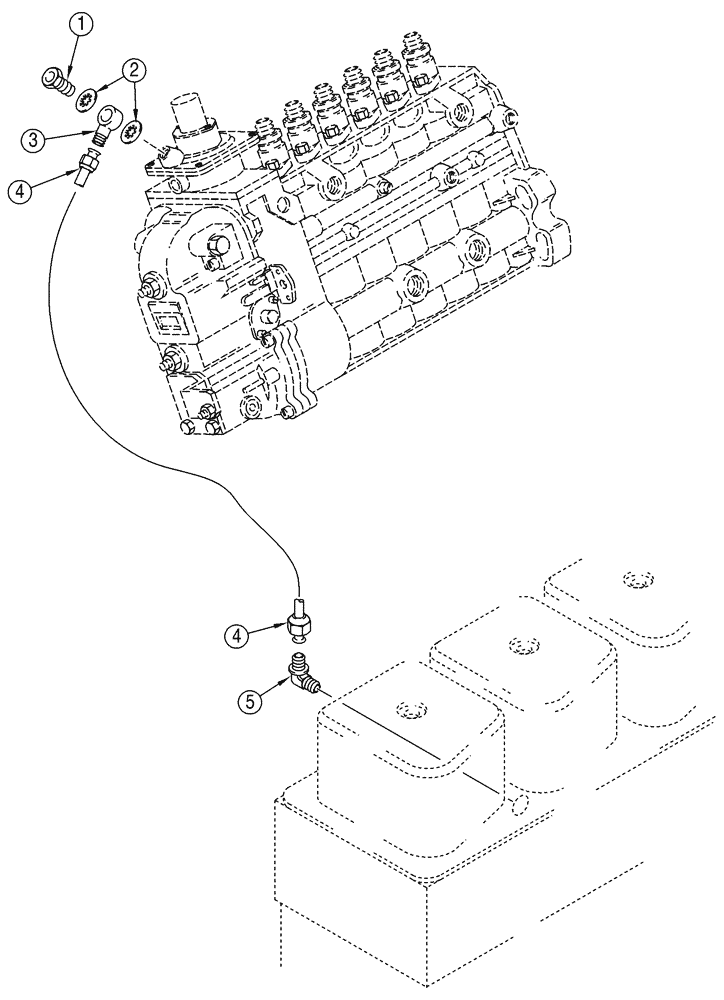

Схема запчастей Case 621D - (03-07) - ANEROID AND WASTEGATE SYSTEM, 6T-590 EMMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
4
4
3
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J903035

BANJO BOLT

M12 x 24

1шт.

2

J935171

SEALING WASHER

12 x 19 x 1,5 mm

2шт.

3

J919644

FITTING

1шт.

4

J934608

TUBE,6.35 mm OD x 220 mm L

1шт.

5

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.
