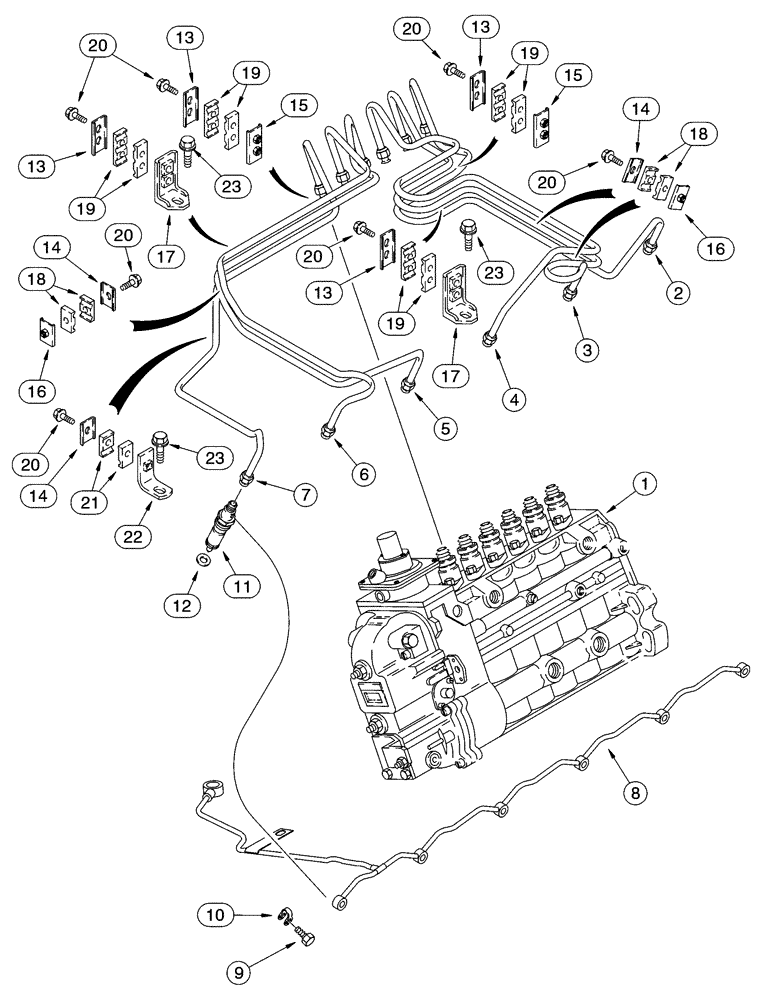

Запчасти Case 621D (03-05) - FUEL INJECTION SYSTEM, 6T-590 EMMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J931278

PUMP, FUEL INJECTION

PUMP, INJECTION

1шт.

1

JR991963

REMAN-INJECTION PUMP

Pump Assy.

1шт.

1

JC991963

CORE-INJECTION PUMP

Return Part Number

1шт.

*

See Figure XX-XX

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 1

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 2

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 3

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 4

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 5

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 6

1шт.

8

J284529

MANIFOLD

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

10

J903380

SEAL

6шт.

11

J929490

NOZZLE INJECTION

6шт.

*

See Figure XX-XX

1шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

6шт.

12

J906659

SEAL

7 mm

6шт.

13

J904519

SUPPORT

4шт.

14

CURJ904711

CLAMP

4шт.

15

J917716

BRACE

2шт.

16

J917717

BRACE

3шт.

17

J282942

BRACKET

2шт.

18

J917746

CLAMP

5шт.

19

J917747

CLAMP

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

14шт.

21

J919359

CLAMP

2шт.

22

J940840

BRACE

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.
