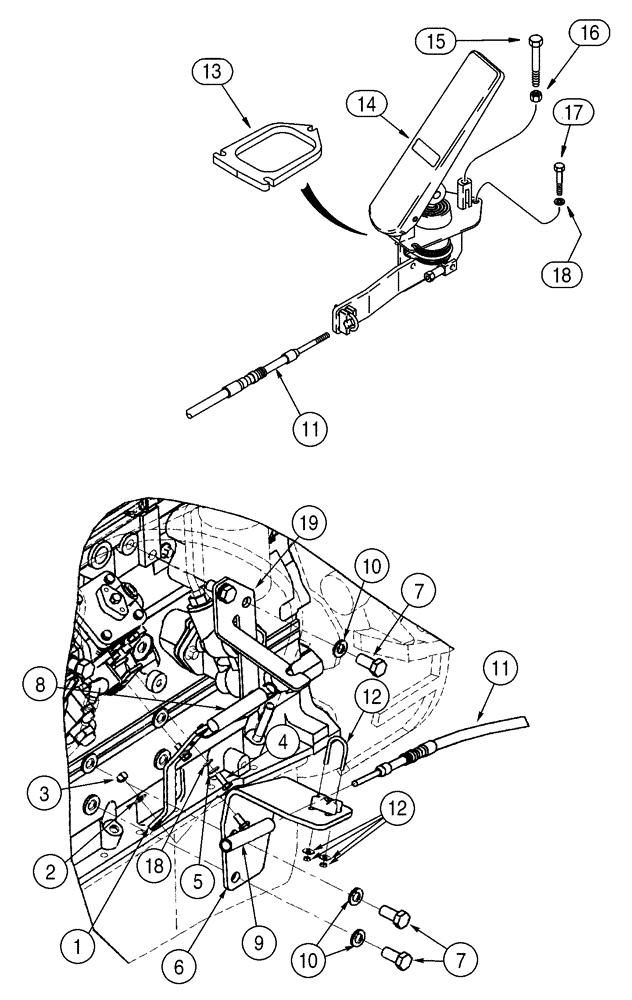

Запчасти Case 621D (03-01) - CONTROLS - THROTTLE, FOOT (03) - FUEL SYSTEM

1

293270A1

LEVER

1шт.

2

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

3

231-4644

LOCK NUT,1/4"-28, GB

1шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

293385A1

SUPPORT

1шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

8

D124939

SPRING

1шт.

9

225619A1

BALL JOINT

1шт.

10

892-11012

LOCK WASHER,M12

4шт.

11

390876A1

CABLE

1шт.

Includes Hardware

1шт.

12

259529A1

CLAMP BRACKET

1шт.

Includes Hardware

1шт.

13

234124A2

PLATE

1шт.

14

295157A1

PEDAL ASSY.

1шт.

Accelerator

1шт.

See Figure XX-XX

1шт.

15

627-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9, Full Thd

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

17

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

3шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

19

293373A1

SUPPORT

1шт.
