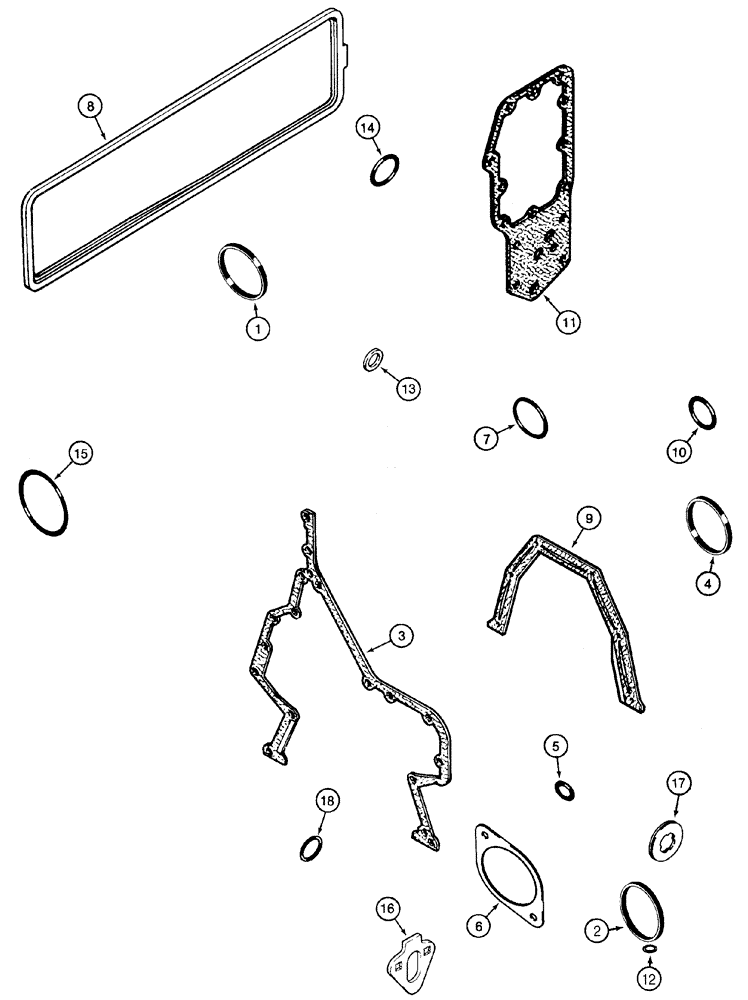

Запчасти Case 621D (02-28) - GASKET KIT, 6T-590 EMMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

A77964

SEAL PACKAGE

1шт.

Incl. 1 - 18

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

See Figure 2-35

1шт.

2

J935032

SEAL

1шт.

See Figure3-21

1шт.

3

J938156

GASKET,0.79mm Thk

1шт.

See Figure 2-33

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

See Figure 2-33

1шт.

5

J913994

O-RING

1шт.

See Figure 2-33

1шт.

6

J929751

GASKET

1шт.

See Figure 2-33

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

See Figure 2-31

1шт.

8

J284623

GASKET

1шт.

See Figure 2-69

1шт.

9

J938159

GASKET

1шт.

See Figure 2-77

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

See Figure 2-69

1шт.

11

J942914

GASKET

1шт.

See Figure 2-45

1шт.

12

J929457

O-RING

23/32 ID x 7/64

1шт.

See Figure 2-45

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

See Figures 2-47, 2-49

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID

1шт.

Not Used In This Application

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

See Figure 2-83

1шт.

16

J931059

GASKET

1шт.

See Figure 3-17

1шт.

17

J928759

SEALING WASHER

8шт.

See Figure 2-69

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

See Figure 2-83

1шт.
