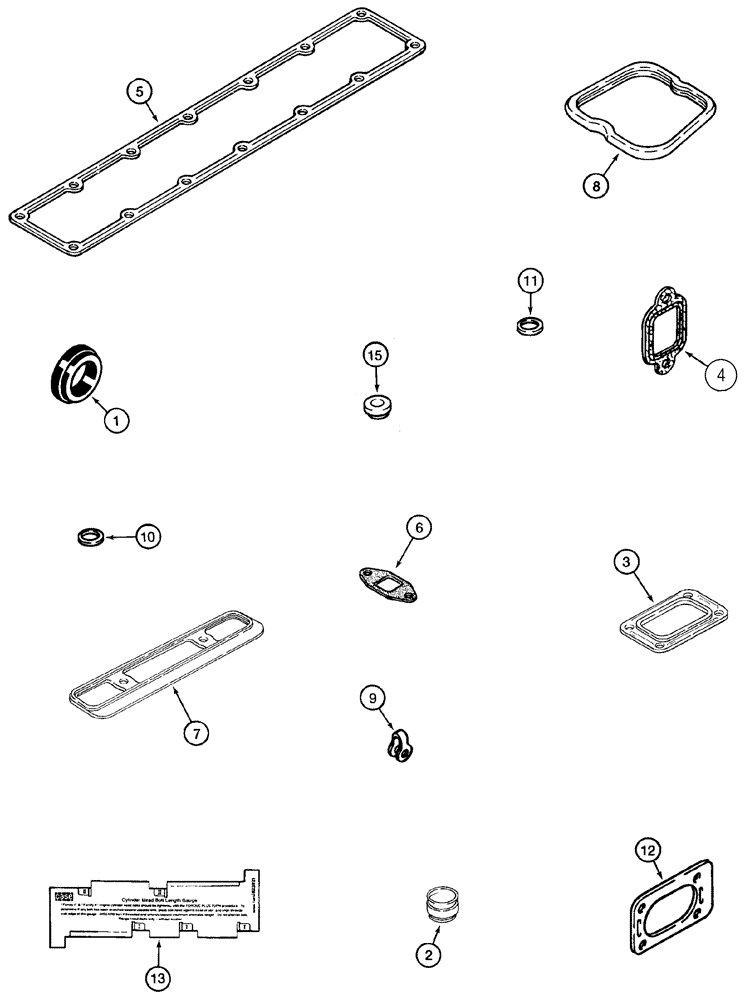

Запчасти Case 621D (02-27) - GASKET KIT, 6T-590 EMMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

A77925

GASKET KIT

1шт.

Incl. 1 - 15

1шт.

1

J923331

GASKET

1шт.

See Figure 2-53

1шт.

2

J921640

SEAL

12шт.

See Figure 2-55

1шт.

3

J919369

GASKET,0.5mm Thk

1шт.

See Figure 2-37

1шт.

4

J927154

GASKET,0.38mm Thk

6шт.

See Figure 2-37

1шт.

5

J938152

MANIFOLD GASKET

1шт.

See Figure 2-37

1шт.

6

J937706

GASKET,0.79mm Thk

1шт.

See Figure 2-37

1шт.

7

J930426

GASKET

1шт.

Not Used In This Application

1шт.

8

J930906

GASKET

6шт.

See Figure 2-53

1шт.

9

J903380

SEAL

6шт.

See Figure 3-15

1шт.

10

J906659

SEAL

7 mm

6шт.

See Figures 3-15, 3-25

1шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

6шт.

See Figure 3-25

1шт.

12

J914856

GASKET,1.02mm Thk

1шт.

Not Used In This Application

1шт.

13

J823921

GAUGE

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

See Figure 2-53

1шт.
