(02-26) - PISTONS - CONNECTING RODS, 6T-590 EMMISSIONS CERTIFIED ENGINE, CONNECTING ROD

Запчасти Case 621D (02-26) - PISTONS - CONNECTING RODS, 6T-590 EMMISSIONS CERTIFIED ENGINE, CONNECTING ROD (02) - ENGINE

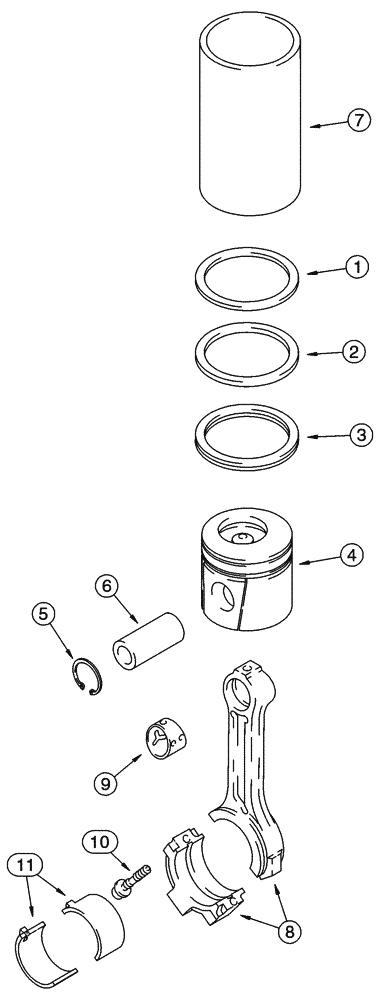

Схема запчастей Case 621D - (02-26) - PISTONS - CONNECTING RODS, 6T-590 EMMISSIONS CERTIFIED ENGINE, CONNECTING ROD (02) - ENGINE
10
6
5
8
1
3
2
9
7
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

*

6T-590 EMISSIONS CERTIFIED ENGINE

1шт.

*

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

6шт.

*

Piston, Standard

1шт.

*

Incl. J802746, 1 - 5

1шт.

J802746

PISTON RING SET

1шт.

*

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802764

PISTON & RINGS KIT

0,5 mm

6шт.

*

Oversize

1шт.

*

Incl. J802422, 1 - 5

1шт.

J802422

PISTON RING SET

0,5 mm

1шт.

*

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0,5 mm

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J802765

PISTON & RINGS KIT

1,0 mm

6шт.

*

Oversize

1шт.

*

Incl. J802423, 1 - 5

1шт.

J802423

PISTON RING SET

1,0 mm

1шт.

*

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1,0 mm

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

7

J904166

SLEEVE

1шт.

*

Use With : J802747

1шт.

J942581

ROD, CONNECTING

6шт.

JR942581

REMAN-CONNECTING ROD

Reman for New PN J942581

6шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number

6шт.

84145405R

REMAN-CONNECTING ROD

621D BEFORE S/N JEE0135500, Reman For New PN J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

*

Incl. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

6шт.

*

Standard

1шт.

11

A77466

BEARING SET

0,25 mm

6шт.

*

Undersize

1шт.

11

A77467

BEARING LINER

0,50 mm

6шт.

*

Undersize

1шт.

11

A77468

BEARING SET

0,75 mm

6шт.

*

Undersize

1шт.

11

A77469

BEARING SET

1,0 mm

6шт.

*

Undersize

1шт.
