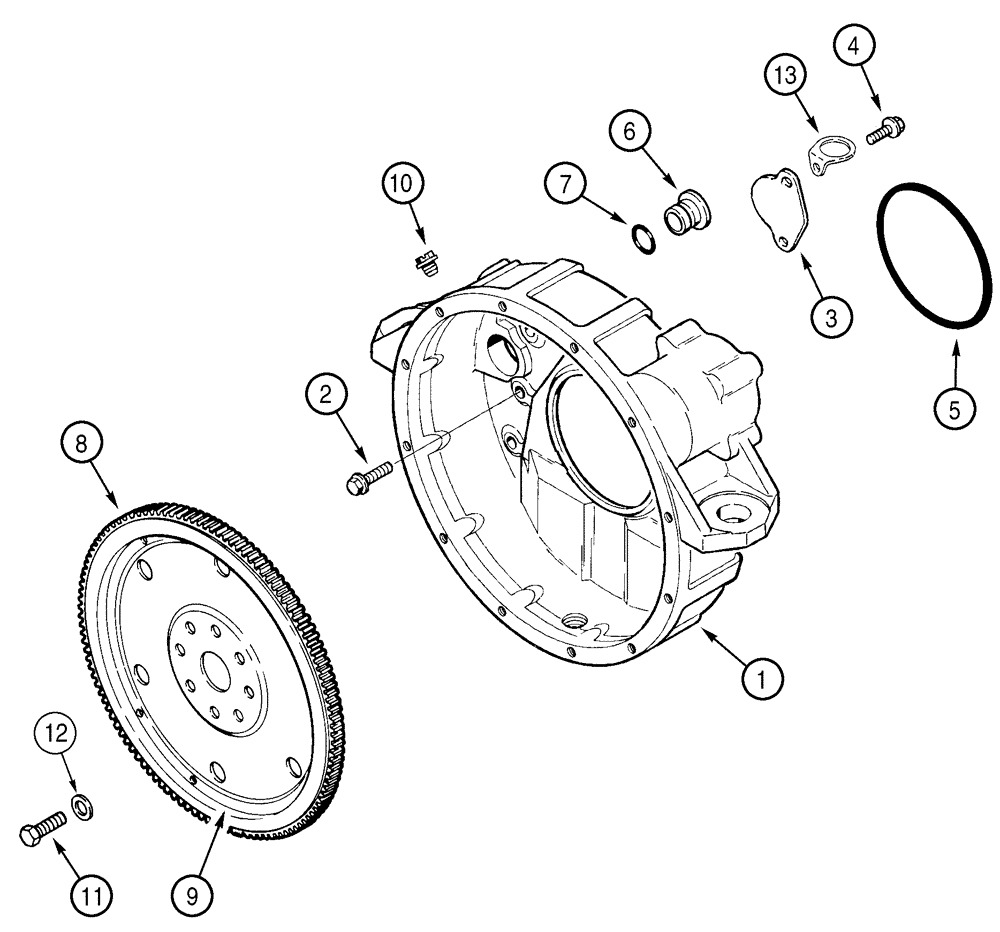

Запчасти Case 621D (02-25) - FLYWHEEL AND HOUSING, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J931714

HOUSING

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

3

J925234

PLATE

1шт.

4

J912072

SELF-TAP SCREW

M8 st x 15

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J917039

FLYWHEEL

1шт.

Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Gear

1шт.

9

NSS

NOT SOLD SEPARAT

Plate

1шт.

10

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

13

J928989

CLIP

1шт.
