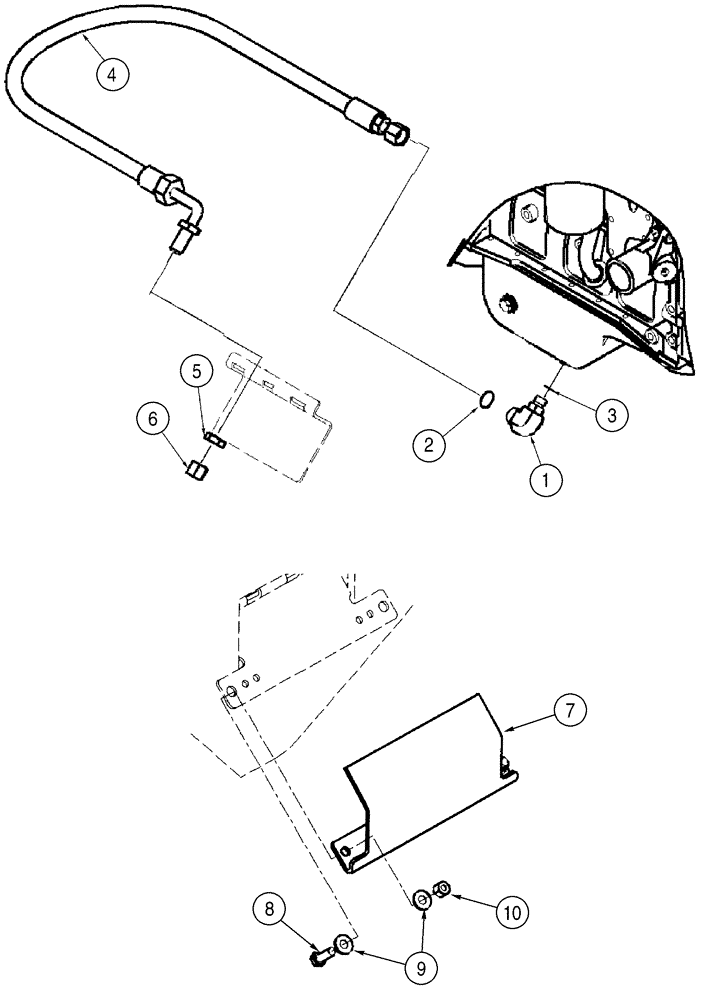

Запчасти Case 621D (02-19) - OIL PUMP, PAN - DRAIN LINE (02) - ENGINE

1

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

1шт.

Incl. 2, 3

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

4

397437A1

FLEXIBLE HOSE

1250 mm (49-1/2 in)

1шт.

Drain

1шт.

5

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

6

218-756

CAP,37 Degree, 7/8"-14

1шт.

7

407632A1

COVER

1шт.

Remote Drains

1шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
