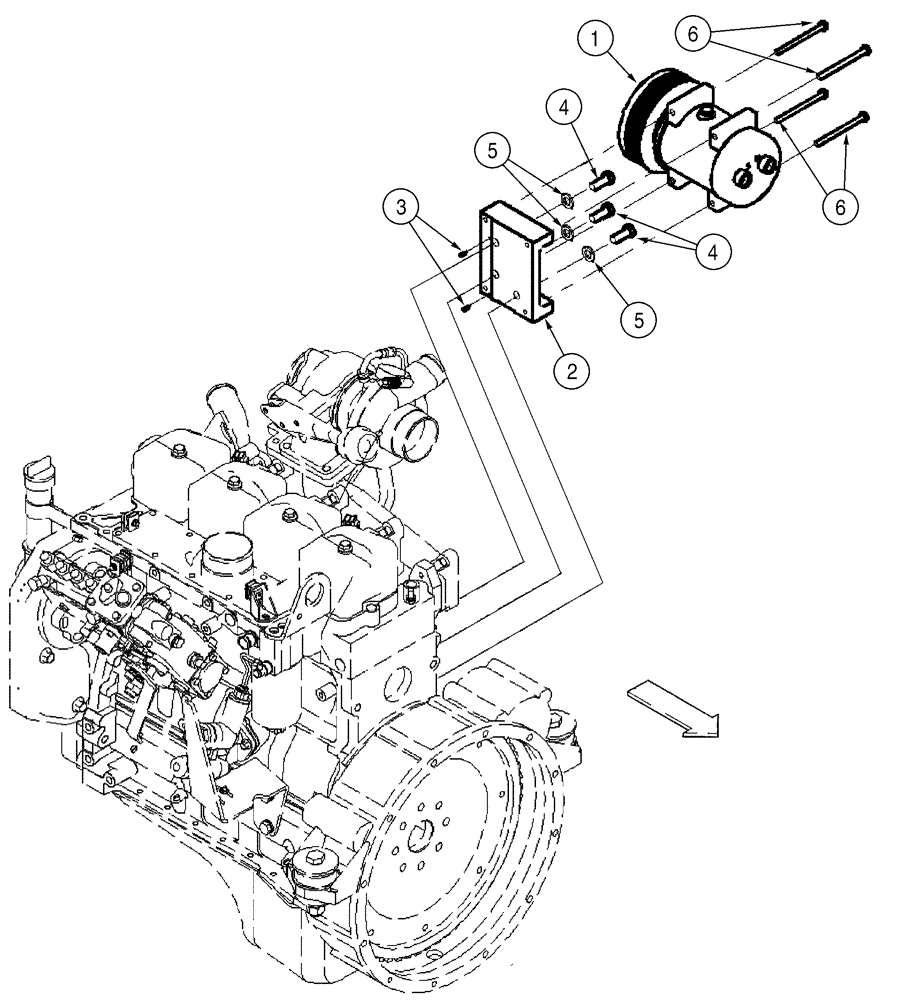

Запчасти Case 621D (09-52) - AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

1

352524A1

COMPRESSOR

1шт.

Air Conditioning

1шт.

Component Parts Not Serviced Separately

1шт.

86983968R

REMAN-COMPRESSOR

621D BEFORE S/N JEE0135500, Reman for New P/N 352524A1

1шт.

86983968C

CORE-COMPRESSOR

Return Number

1шт.

2

391851A2

BRACKET

1шт.

Compressor Mounting

1шт.

3

837-4016

DOWEL,M4 x 16

2шт.

4

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

6

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.
