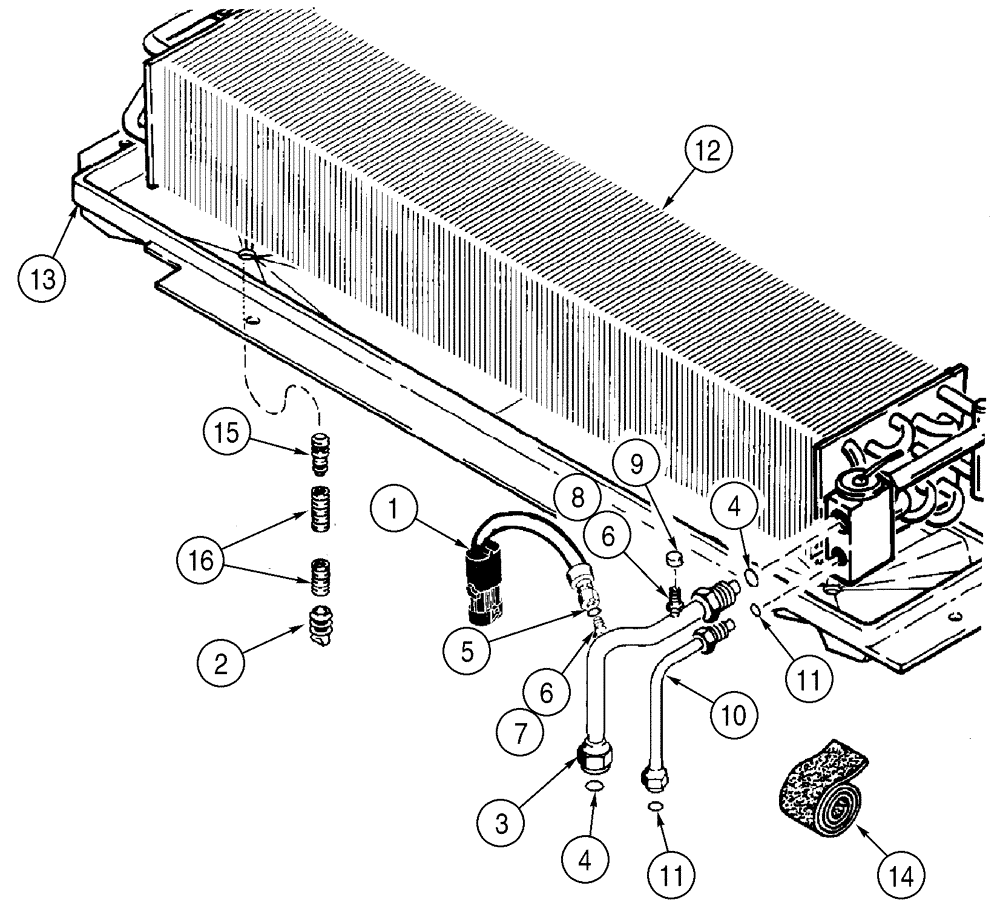

Запчасти Case 621D (09-49) - AIR CONDITIONING, CAB TO EVAPORATOR CORE (09) - CHASSIS

1

122579A1

SWITCH, A/C LOW PRES

1шт.

Low

1шт.

2

109239C2

CHECK VALVE

2шт.

3

104399A1

TUBE

1шт.

Upper

1шт.

Includes 4 - 9

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

5

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

6

1250594C2

CORE

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting

1шт.

9

122553A1

CAP

1шт.

10

104400A1

TUBE,0.375" OD, 115, 53 mm Length

1шт.

Lower

1шт.

Includes 11

1шт.

11

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

12

233424A1

HEATER

1шт.

Heating and Air Conditioning, See Page(s) 9-171

1шт.

13

1339577C3

PAN

1шт.

Condensation

1шт.

See Page(s) 9-173

1шт.

14

83822C1

TAPE

610 mm (24 in), Evaporator Core, Tubes, Valve and Hoses

1шт.

Cut From 1954475C1

1шт.

15

1250522C3

FITTING

2шт.

Drain, Serial Range: Hose-Housing

1шт.

16

1977334C1

HOSE

610 mm (24-1/8 in), Drain

2шт.

From Condensation Pan

1шт.

Cut From 198091C1

1шт.
