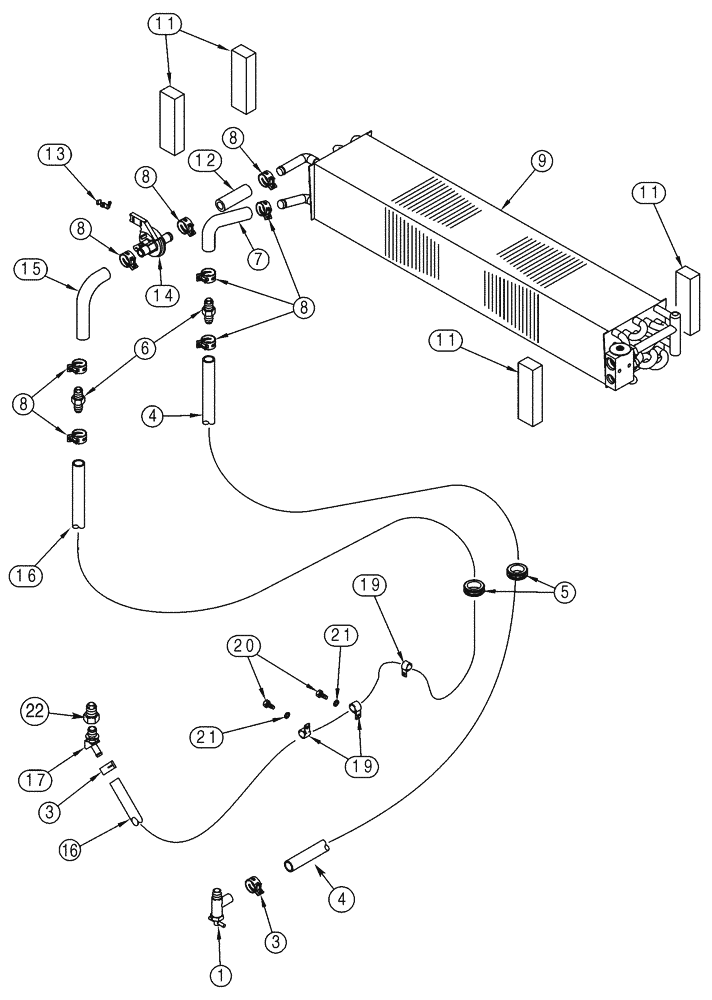

Запчасти Case 621D (09-48) - HEATING SYSTEM (09) - CHASSIS

1

301803R1

SHUT-OFF VALVE

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

Return

1шт.

Cut From 97252CX

1шт.

5

L116914

GROMMET

2шт.

Heater Hoses

1шт.

6

1301342C1

FITTING

2шт.

7

233213A1

HEATER HOSE,15.00 mm ID x 160.00 mm

1шт.

Special, Supply

1шт.

8

1954736C1

HOSE CLAMP,#24

8шт.

9

233424A1

HEATER

1шт.

Assembly

1шт.

Heating and Air Conditioning

1шт.

See Page(s) 9-171

1шт.

REF 6 - 9

1шт.

10

234325A1

HEATER

1шт.

Models With Heater Only

1шт.

Not Shown

1шт.

11

1340075C2

SEAL

130 mm (5-1/8 in), Core End

4шт.

Cut From 1999750C1

1шт.

12

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Return

1шт.

Cut From 97252CX

1шт.

13

1954626C1

SPRING CLIP

1шт.

Heater Cable Retaining

1шт.

14

1331087C1

HEATER VALVE

1шт.

15

233224A1

HEATER HOSE,15.00 mm ID x 174.00 mm

1шт.

Special, Return

1шт.

16

1285485C3

HOSE

2540 mm (100 in), Supply

1шт.

With White Stripe

1шт.

Cut From R54970

1шт.

17

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

20

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

21

892-11012

LOCK WASHER,M12

2шт.

22

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

1шт.
