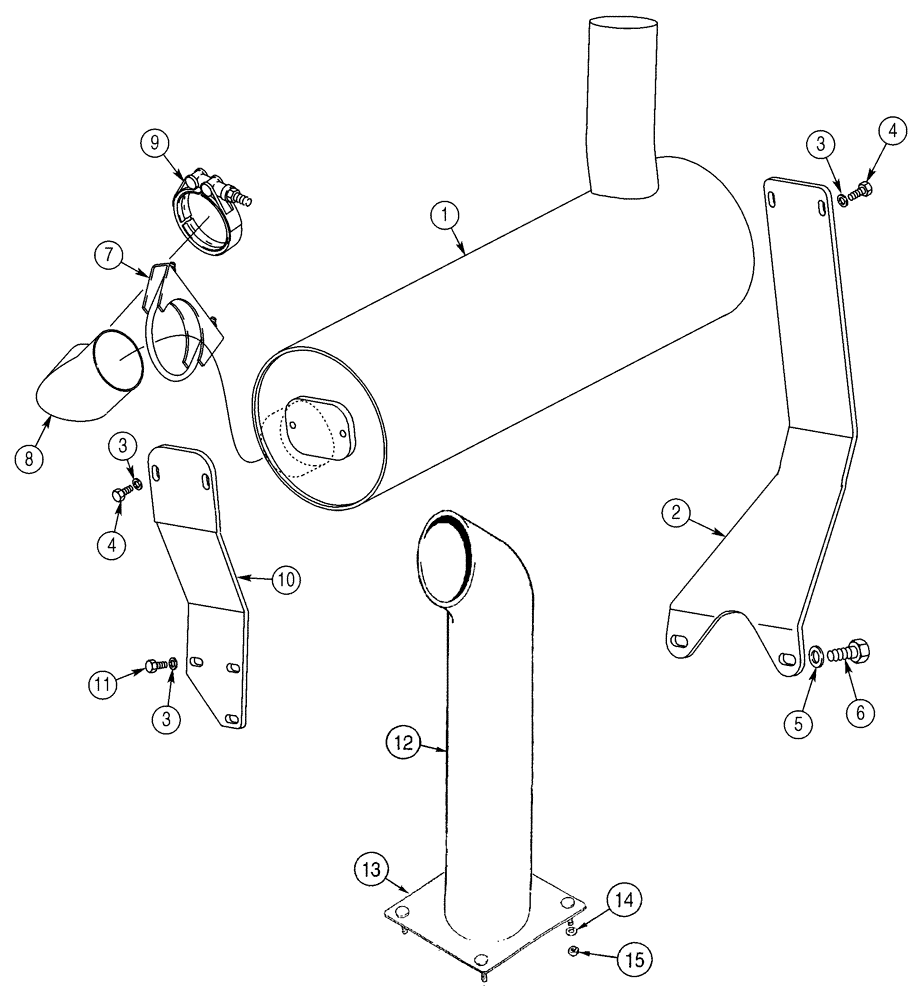

Запчасти Case 621D (02-12) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

388283A1

MUFFLER

1шт.

Standard

1шт.

2

398288A1

BRACKET

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

7шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

7

299456A1

CLAMP,80.5mm ID

1шт.

8

397542A1

ELBOW

1шт.

9

J903652

CLAMP

1шт.

10

398289A1

BRACKET

1шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

12

408195A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

13

408196A1

PLATE

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
