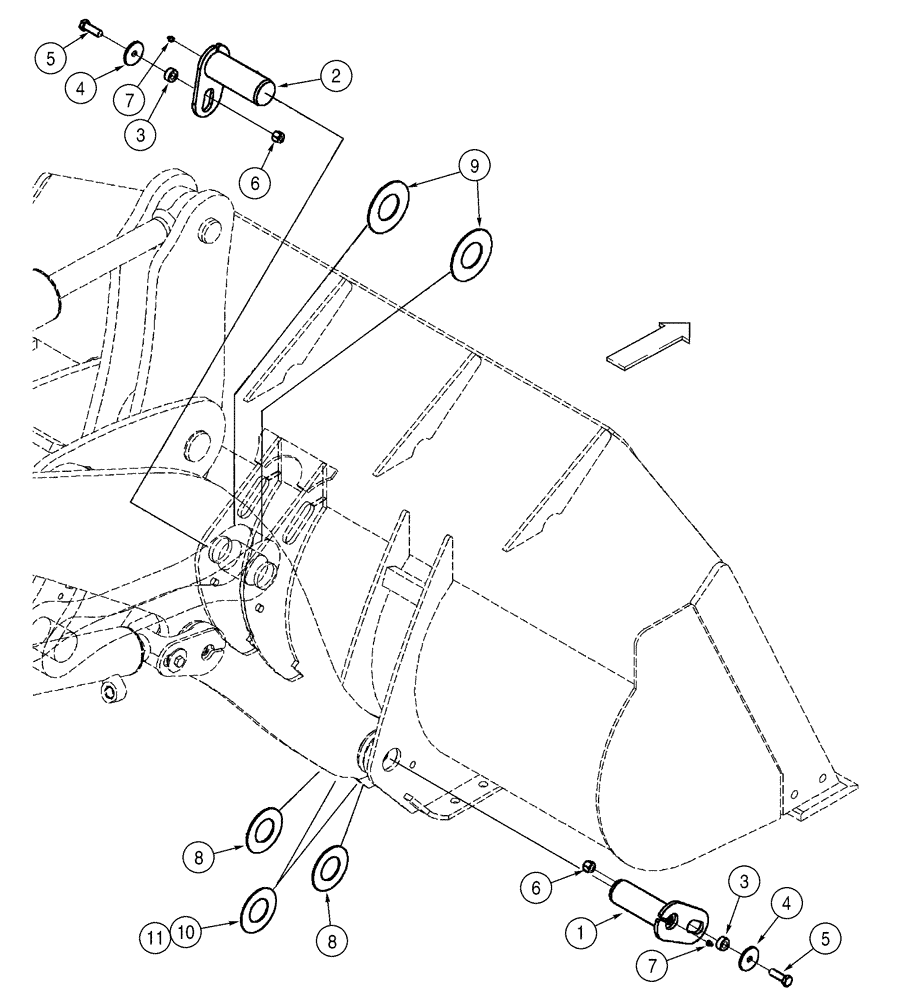

Запчасти Case 621D (09-07) - BUCKETS - ATTACHMENT, Z-BAR LOADER (09) - CHASSIS

1

361139A1

PIN

2шт.

Lift Arm

1шт.

2

375326A1

PIN ASSY.

1шт.

Bucket

1шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

1шт.

9

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

1шт.

10

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

1шт.

11

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

1шт.
