Запчасти Case 621D (09-06B) - FRAME - LOADER LIFT AND LINKAGE/ CYLINDERS XT - IF USED (09) - CHASSIS

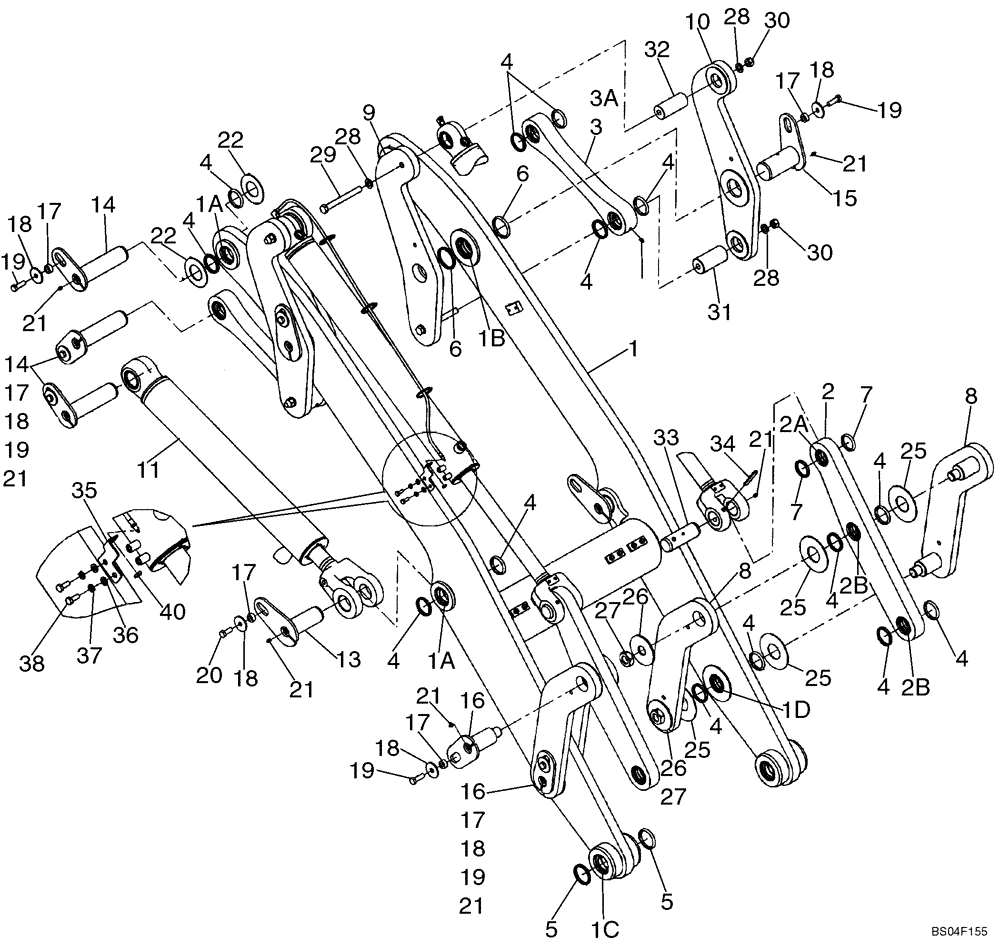

Схема запчастей Case 621D - (09-06B) - FRAME - LOADER LIFT AND LINKAGE/ CYLINDERS XT - IF USED (09) - CHASSIS
22
6
18
5
17
2
21
4
26
3a
7
7
21
25
3
30
4
4
30
21
25
20
2b
4
27
17
2b
17
18
28
28
4
18
4
18
4
8
18
4
21
17
34
10
8
14
29
17
16
33
32
4
4
5
13
40
6
19
1b
25
4
1c
1d
16
36
31
27
15
8
9
19
4
21
11
1a
14
35
4
22
19
2a
19
17
21
3
1a
25
28
1
26
19
21
18

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

XT LOADER - CORRECTIONS MADE IN PIN CALLOUTS

1шт.

1

377956A4

ARM/LIFTING DEVICE

Loader Lift; Incl. 1A - 1D

1шт.

1a

358624A2

BUSHING

Lift Arm Pivot

4шт.

1b

379066A2

BUSHING

Lift Arm

2шт.

1c

379091A2

BUSHING,70.17mm ID x 82.66mm OD x 55mm L

Lift Arm

4шт.

1d

379191A2

BUSHING

Lift Arm

2шт.

2

377966A3

LINK

Dump; Incl. 2A, 2B

2шт.

2a

369432A1

BUSHING

Dump Link

1шт.

2b

379191A2

BUSHING

Lift Arm

2шт.

3

377968A3

LINK

Anchor; Incl. 3A

2шт.

3a

369433A2

BUSHING

Anchor Link

2шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

63.5

28шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8

4шт.

6

D95148

WIPER SEAL

76.2

4шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

57.125

4шт.

8

408533A2

LINK

Guide

4шт.

9

377961A2

LINK

Bellcrank; Right Hand

2шт.

10

377964A2

LINK

Bellcrank; Left Hand

2шт.

11

87405374

CYLINDER ASSY.

114 ID x 788 mm strk; Lift; See Figure 08-28A

2шт.

12

87405381

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 1130.1mm Stroke

105 ID x 955 mm strk; Bucket Tilt; See Figure 08-30

2шт.

13

361133A2

PIN ASSY.

Lift Arm Pivot; Rod; Power Tan

2шт.

14

361128A1

PIN

Lift Arm Pivot; Head; Power Tan

6шт.

15

379070A2

PIVOT PIN,76.2mm OD x 170.5mm L

Bellcrank Pivot; CNH CE Gray

2шт.

16

379197A2

PIN,63.5mm OD x 158.1mm L

Guide Link; CNH CE Gray

4шт.

17

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

18

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

22

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

Hardened

1шт.

23

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

Hardened

1шт.

24

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

Hardened

1шт.

25

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

Hardened

8шт.

26

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

Hardened

4шт.

27

131-53

NUT,1 1/2"-12

4шт.

28

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

29

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

M20 x 190; 10.9

4шт.

30

829-1420

NUT,M20, Cl 10

4шт.

31

368776A1

PIN,63.5mm OD x 130.65mm L

Bellcrank; Anchor Side

2шт.

32

368775A1

PIN

Bellcrank; Cylinder Side

2шт.

33

368836A2

PIN,57.15mm OD x 165mm L

Tilt Cylinder

2шт.

34

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

35

379672A2

BRACKET

Grease Line

2шт.

37

892-11010

LOCK WASHER,M10

4шт.

38

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

39

328082A1

ELBOW

1/8 PT

2шт.

40

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

41

313682A1

FLEXIBLE HOSE

1320 mm (62 in); Grease

2шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

Выбрано товаров: 50
