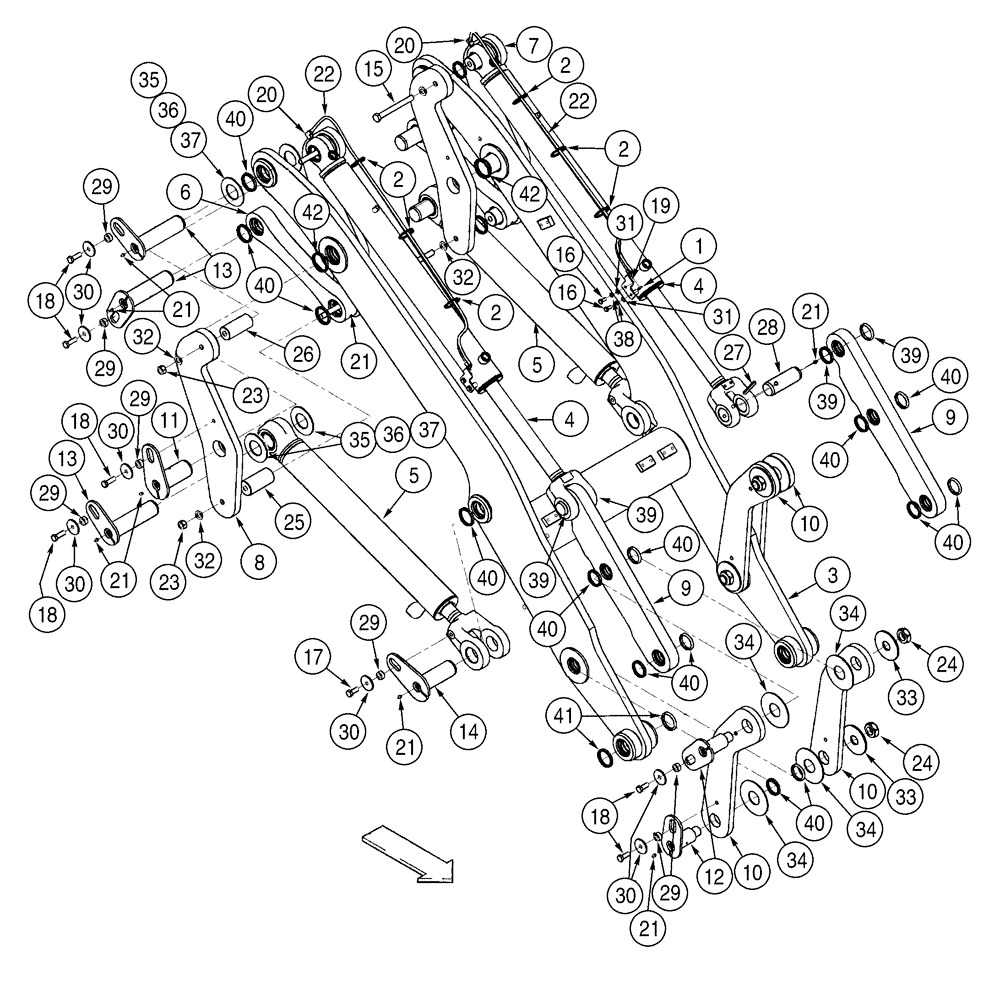

Запчасти Case 621D (09-06) - FRAME - LOADER LIFT AND LINKAGE, XT LOADER (09) - CHASSIS

1

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

6шт.

3

377956A3

LIFT ARM

Loader Lift

1шт.

4

381088A2

CYLINDER

105 ID x 954 mm strk, Bucket Tilt See Figure 08-06

2шт.

5

394356A1

CYLINDER

114 ID x 788 mm strk, Lift See Figure 08-04

2шт.

6

377968A3

LINK

2шт.

7

377964A2

LINK

Bellcrank, Left Hand

2шт.

8

377961A2

LINK

Bellcrank, Right Hand

2шт.

9

377966A3

LINK

Dumplink Bushing 369432A2, Lift Arm Bushing 379191A2

2шт.

10

408533A2

LINK

4шт.

11

379070A2

PIVOT PIN,76.2mm OD x 170.5mm L

2шт.

12

379197A2

PIN,63.5mm OD x 158.1mm L

4шт.

13

361128A1

PIN

6шт.

14

361133A1

PIN

2шт.

15

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

16

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

19

379672A2

BRACKET

2шт.

20

328082A1

ELBOW

1/8 PT

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

22

313682A1

FLEXIBLE HOSE

1320 mm (62 in), Grease

2шт.

23

829-1420

NUT,M20, Cl 10

4шт.

24

131-53

NUT,1 1/2"-12

4шт.

25

368776A1

PIN,63.5mm OD x 130.65mm L

2шт.

26

368775A1

PIN

2шт.

27

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

2шт.

28

368836A2

PIN,57.15mm OD x 165mm L

2шт.

29

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

14шт.

30

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

32

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

33

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

34

116893A1

WASHER,65mm ID x 152mm OD x 3.5mm Thk

8шт.

35

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

Hardened

1шт.

36

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

Hardened

1шт.

37

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

Hardened

1шт.

38

892-11010

LOCK WASHER,M10

4шт.

39

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

4шт.

40

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

28шт.

41

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

42

D95148

WIPER SEAL

4шт.
