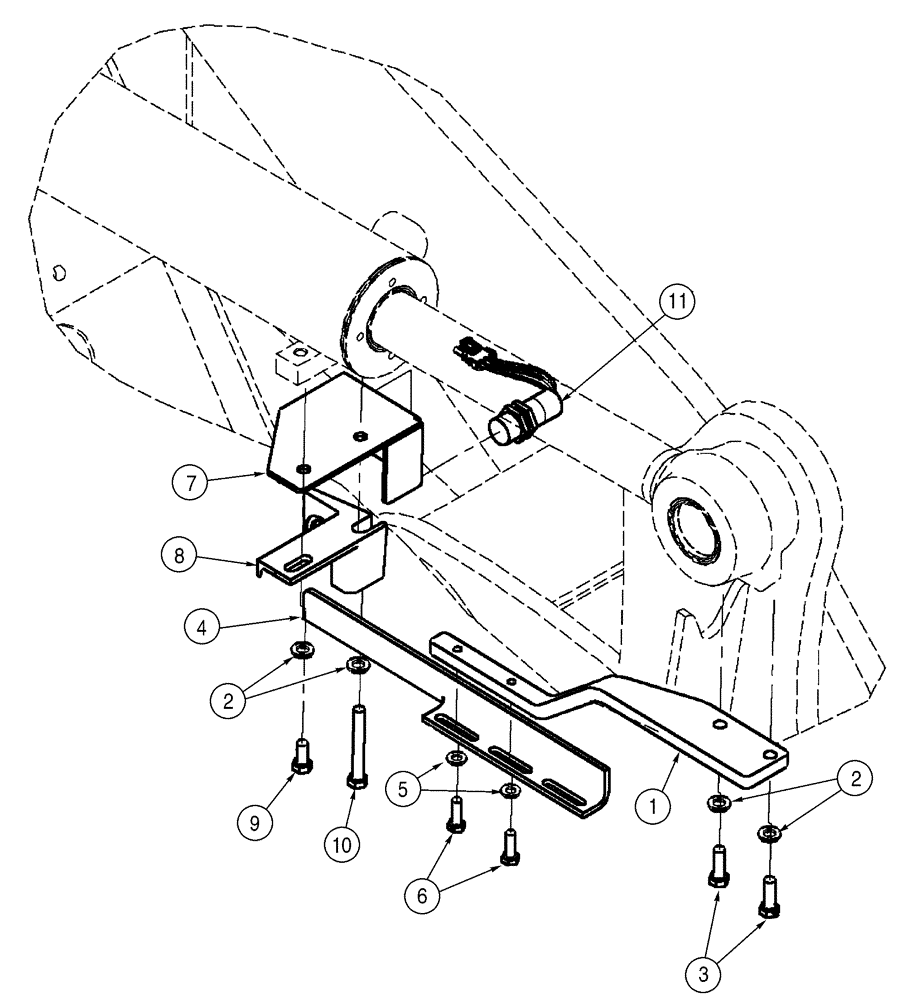

Запчасти Case 621D (09-01) - CONTROL - RETURN-TO-DIG, Z BAR LOADER (09) - CHASSIS

1

376391A2

BRACKET

1шт.

, Serial Range: Return-Dig

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

4

376392A1

BRACKET

1шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

367636A1

COVER

1шт.

Proximity Switch

1шт.

8

L125983

SUPPORT

1шт.

Proximity Switch

1шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

10

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

11

1546497C1

SWITCH

1шт.

Proximity

1шт.
