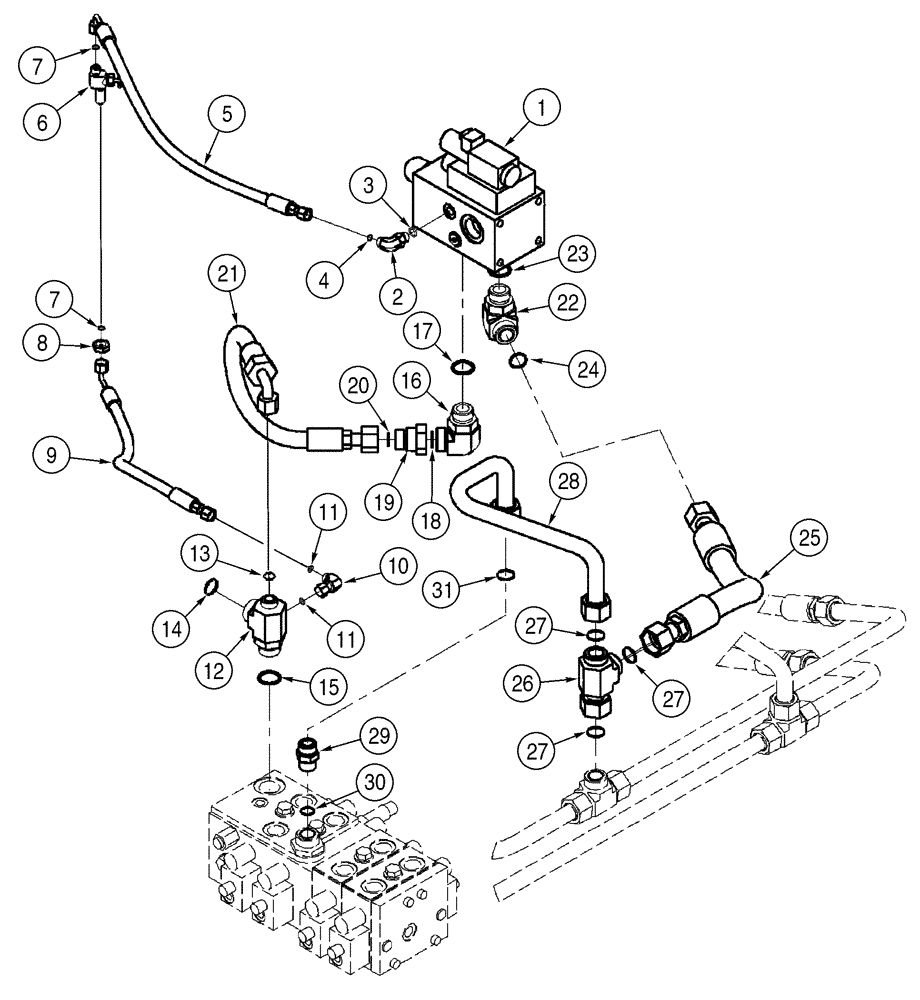

Запчасти Case 621D (08-43) - HYDRAULICS - RIDE CONTROL, DIRECTIONAL VALVE TO LOADER VALVE (08) - HYDRAULICS

1

390203A1

VALVE, CONTROL

1шт.

Directional Control

1шт.

See Figure 8-157

1шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M14 orb x 8 fc sl, Incl. 3, 4

1шт.

Incl. 3, 4

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

4

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

5

397942A1

HOSE ASSY.

616 mm lg

1шт.

6

397939A1

BLEEDER VALVE

1шт.

Incl. 7

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

Face Seal End

1шт.

8

701-1254

BHD LOCK NUT,9/16" - 18

M6

1шт.

9

404351A1

HOSE ASSY.

696 mm lg

1шт.

10

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl

1шт.

Incl. 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

Face Seal End

1шт.

12

404350A1

FITTING

1шт.

Incl.13 - 15

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

15

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

16

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

Incl. 17, 18

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

19

201-147

REDUCER,1 3/16"-12 Male x 1 7/16"-12 Fem, ORFS

1шт.

Incl. 20

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

21

405792A1

HOSE ASSY.

598 mm lg

1шт.

22

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

Incl. 23, 24

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

24

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

25

393611A1

HOSE ASSY.

1шт.

26

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1шт.

Incl. 27

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

Face Seal End

1шт.

28

393806A1

TUBE

1шт.

Lift Cylinder

1шт.

Closed End

1шт.

29

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

Incl. 30, 31

1шт.

30

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.
