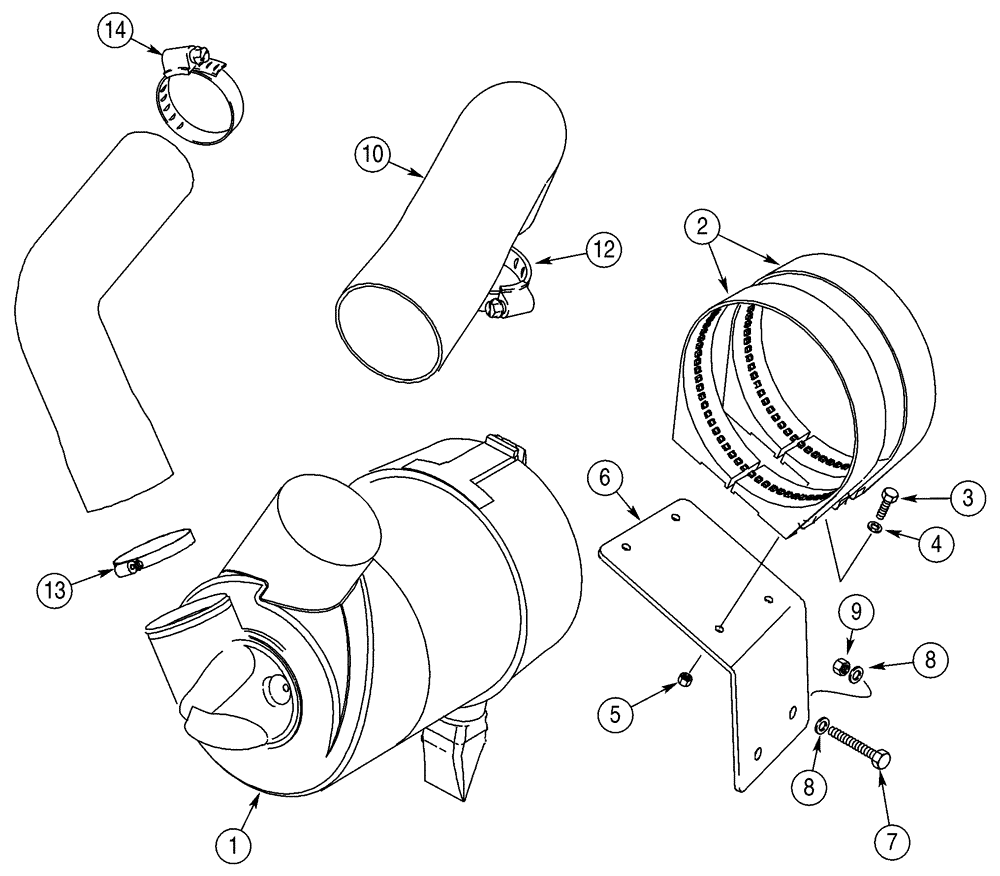

Запчасти Case 621D (02-10) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

390318A1

CLEANER ASSY.

1шт.

See Figure XX-XX

1шт.

2

390319A1

BRACKET

2шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

396734A1

BRACKET

1шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

397116A1

AIR INTAKE TUBE

1шт.

11

397117A1

AIR INTAKE TUBE,101.5 mm OD

1шт.

12

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

13

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

14

L127771

CLAMP,107.95mm - 130.18mm

1шт.
