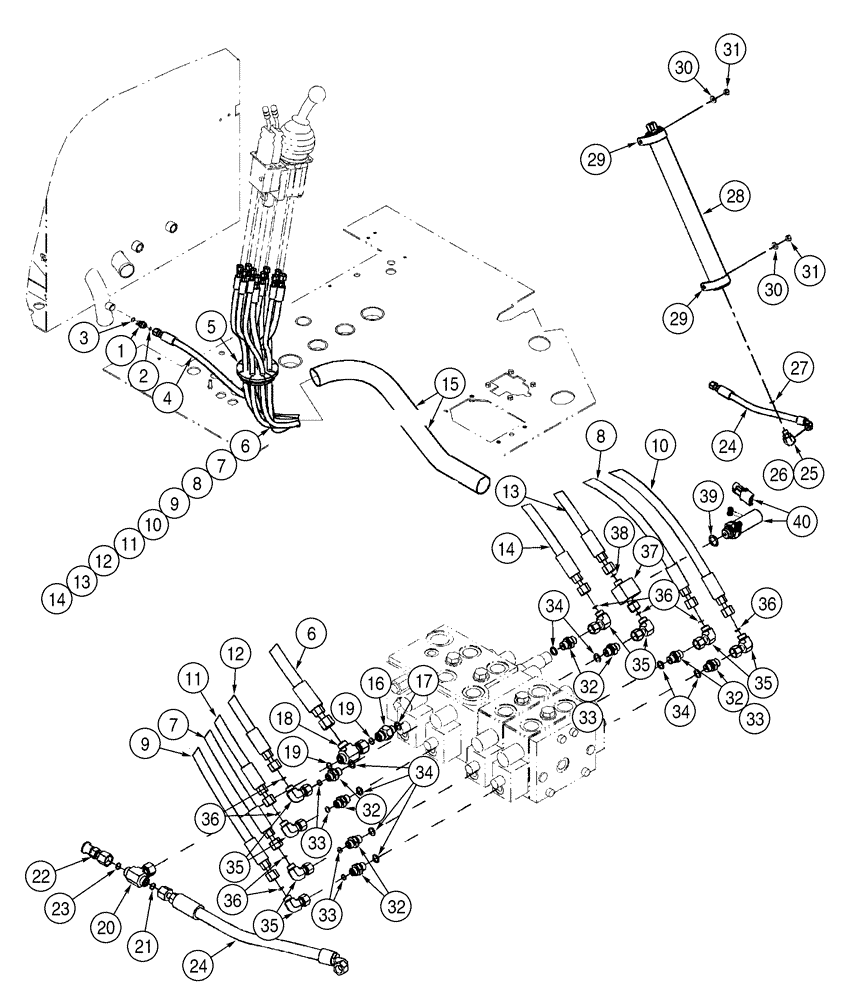

Запчасти Case 621D (08-36) - HYDRAULICS - LOADER CONTROL, REMOTE, HOSE GROMMET TO FOUR SPOOL VALVE (08) - HYDRAULICS

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

Incl. 2, 3

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

4

392059A1

HOSE ASSY.

1294 mm lg

1шт.

Hydraulic Tank

1шт.

5

380912A1

GROMMET

2шт.

6

392058A1

HOSE ASSY.

2453 mm lg

1шт.

Pressure

1шт.

7

366517A1

HOSE ASSY.

2627 mm lg

1шт.

Third Spool

1шт.

Left Hand

1шт.

8

366518A1

HOSE ASSY.

2707 mm lg

1шт.

Third Spool

1шт.

Right Hand

1шт.

9

366519A1

HOSE ASSY.

2737 mm lg

1шт.

Fourth Spool

1шт.

Left Hand

1шт.

10

366520A1

HOSE ASSY.

2752 mm lg

1шт.

Fourth Spool

1шт.

Right Hand

1шт.

11

366430A1

HOSE ASSY.

2492 mm lg

1шт.

Lift

1шт.

Left Hand

1шт.

12

366514A1

HOSE ASSY.

2471 mm lg

1шт.

Tilt

1шт.

Left Hand

1шт.

13

366513A1

HOSE ASSY.

2557 mm lg

1шт.

Lift

1шт.

Right Hand

1шт.

14

366515A1

HOSE ASSY.

2547 mm lg

1шт.

Tilt

1шт.

Right Hand

1шт.

15

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

16

391859A1

VALVE, CHECK

1шт.

Incl. 17

1шт.

17

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

18

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

Incl. 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Face Seal End

1шт.

20

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

Incl. 21

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

22

190119A1

COUPLING

1шт.

Incl. 23

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

24

392060A2

HOSE ASSY.

446 mm lg

1шт.

Accumulator

1шт.

25

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

Incl. 26, 27

1шт.

26

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

28

378076A1

ACCUMULATOR

1шт.

See Figure 8-121

1шт.

29

391868A1

CLAMP

2шт.

30

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

32

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb

8шт.

Incl. 33, 34

1шт.

33

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss Seal

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

35

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl

8шт.

Incl. 36

1шт.

36

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

37

397547A1

FITTING

1шт.

Incl. 38, 39

1шт.

38

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

Face Seal End

1шт.

39

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

40

397600A1

SWITCH

1шт.

Float

1шт.

Incl. O-Ring

1шт.
