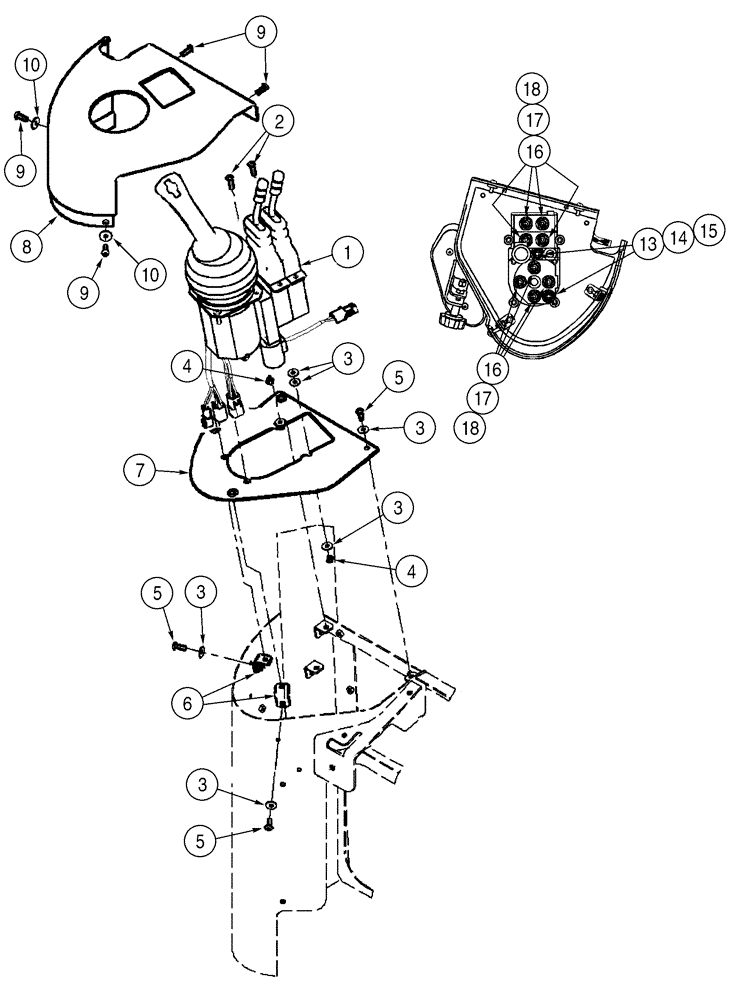

Запчасти Case 621D (08-35) - HYDRAULICS - LOADER CONTROL, REMOTE, THREE LEVER WITH FOUR SPOOL VALVE (08) - HYDRAULICS

1

414393A1

JOYSTICK

1шт.

Three Lever

1шт.

See Figures 8-123 - 8-131, 8137, 8139

1шт.

2

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

6шт.

3

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

4

832-10406

NUT,M6 x 1, Cl 8

6шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

6

400843A2

BRACKET

2шт.

7

400977A2

PLATE

1шт.

8

400403A1

COVER

1шт.

9

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

10

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

2шт.

Incl. 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

16

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb

8шт.

Incl. 17, 18

1шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.
