Запчасти Case 621D (08-33) - HYDRAULICS - LOADER CONTROL, REMOTE, DUAL LEVER WITH THREE SPOOL VALVE (08) - HYDRAULICS

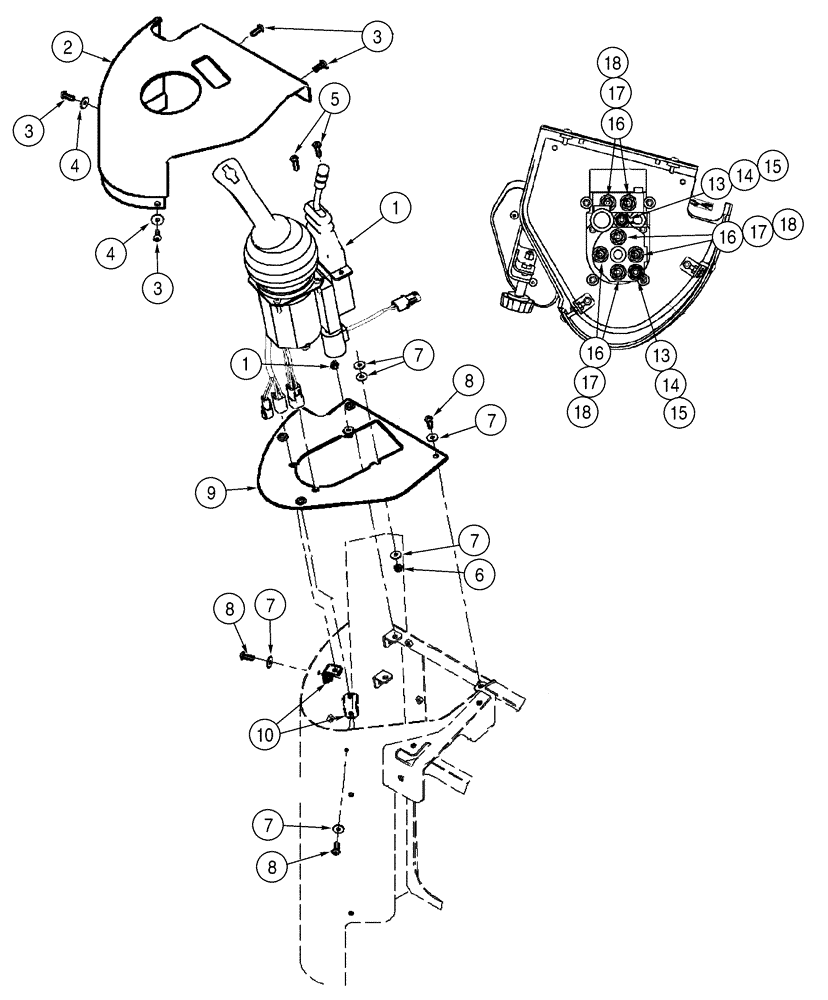

Схема запчастей Case 621D - (08-33) - HYDRAULICS - LOADER CONTROL, REMOTE, DUAL LEVER WITH THREE SPOOL VALVE (08) - HYDRAULICS
3
7
4
13
16
7
14
7
15
6
14
18
7
8
1
18
5
4
7
3
18
16
13
2
10
17
8
17
8
17
15
3
1
16
9

Артикул

Название

Примечание

Количество

1

414392A1

JOYSTICK

1шт.

Dual Lever Remote

1шт.

See Figures 8-123 - 8-135

1шт.

2

400402A1

COVER

1шт.

3

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

4шт.

4

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

2шт.

5

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

6шт.

6

832-10406

NUT,M6 x 1, Cl 8

6шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

14шт.

8

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

9

400977A2

PLATE

1шт.

10

400843A2

BRACKET

2шт.

13

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

2шт.

Incl. 14, 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

16

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb

6шт.

Incl. 17, 18

1шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

Выбрано товаров: 24
