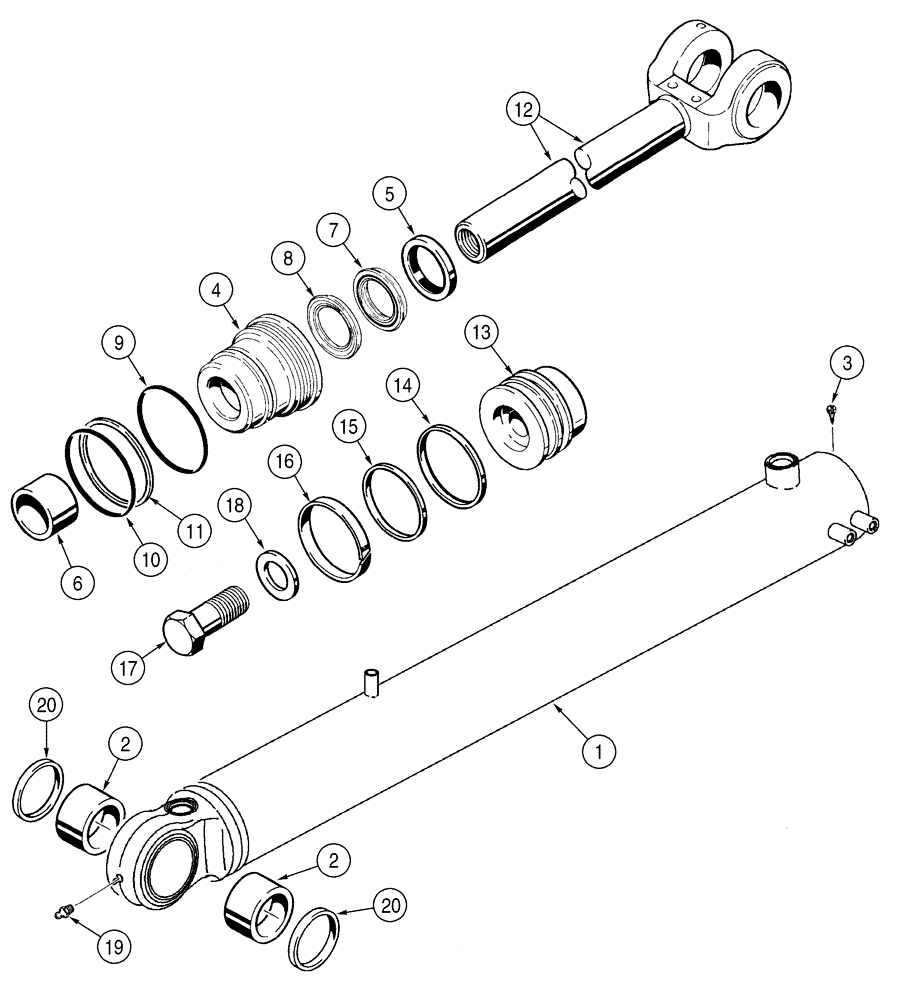

Запчасти Case 621D (08-30) - CYLINDER ASSY - LOADER BUCKET, XT LOADER (08) - HYDRAULICS

381088A2

CYLINDER

105 ID x 954 mm strk

1шт.

Bucket

1шт.

Incl. 1 - 20

1шт.

1

381089A1

HYD CYL SLEEVE

1шт.

Incl. 2

1шт.

2

NSS

NOT SOLD SEPARAT

Bushing

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder

1шт.

Order Components

1шт.

Includes 4 - 10

1шт.

4

381096A1

PACKING GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

336039A1

BUSHING

1шт.

1542877C1

SEAL KIT,57.2mm Rod

1шт.

Seal

1шт.

Incl. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal

1шт.

9

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

10

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

11

384244A1

BACK-UP RING

1шт.

12

381103A1

ROD

57,2 mm dia

1шт.

13

381098A1

PISTON ROD/GLAND

1шт.

14

381099A1

SEAL,101.45mm ID x 106.17mm OD x 6.96mm Thk

1шт.

15

281411A1

SEALING RING,Square, 5.28mm Thk x 90.73mm ID

1шт.

16

381100A1

RING

1шт.

17

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

381101A1

SEAL KIT

1шт.

Seal

1шт.

Incl. 5 - 11, 14 - 16

1шт.
