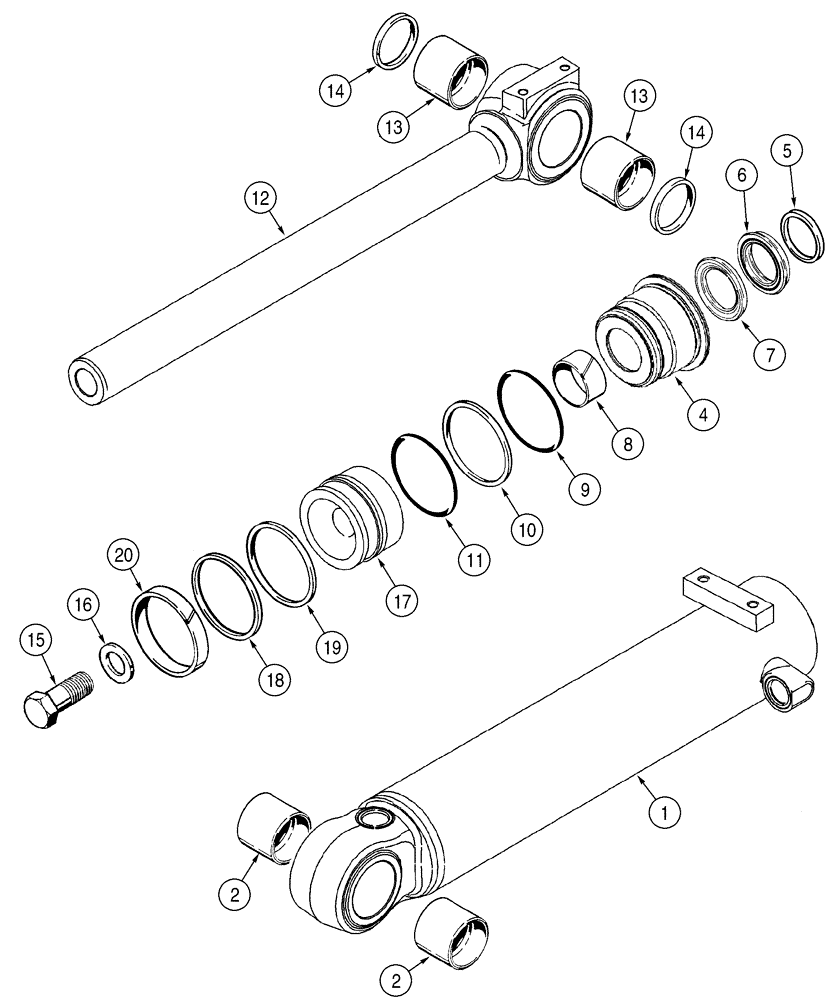

Запчасти Case 621D (08-29) - CYLINDER ASSY - LOADER BUCKET, Z BAR LOADER (08) - HYDRAULICS

339526A1

CYLINDER

127 ID x 620 mm strk

1шт.

Bucket

1шт.

Incl. 1 - 20

1шт.

1

339525A1

BARREL,127mm Bore Dia

1шт.

Incl. 2

1шт.

Incl. 2

1шт.

2

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

Replaces 339521A1

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

Not Illustrated

1шт.

339512A1

GLAND

Cylinder

1шт.

Cylinder

1шт.

Order Components

1шт.

Incl. 4 - 11

1шт.

4

339511A1

GLAND

1шт.

5

D95148

WIPER SEAL

1шт.

1542881C1

SEAL KIT

1шт.

Seal

1шт.

Incl. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal

1шт.

8

336042A1

BUSHING

1шт.

9

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

12

339520A1

ROD ASSY.

76,2 mm dia

1шт.

Incl. 13

1шт.

13

339521A1

BUSHING

2шт.

14

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

15

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

1шт.

16

G104990

WASHER

1шт.

339510A1

PISTON

1шт.

Incl. 17

1шт.

17

339508A1

PISTON,126.33mm Bore, 76.31mm Rod, 72.4mm W

1шт.

18

336030A1

SEAL,123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

19

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

20

336046A1

RING

1шт.

360984A1

SEAL KIT

1шт.

Seal, Incl. 5-11, 19, 20

1шт.

Incl. 5 - 11, 19, 20

1шт.
