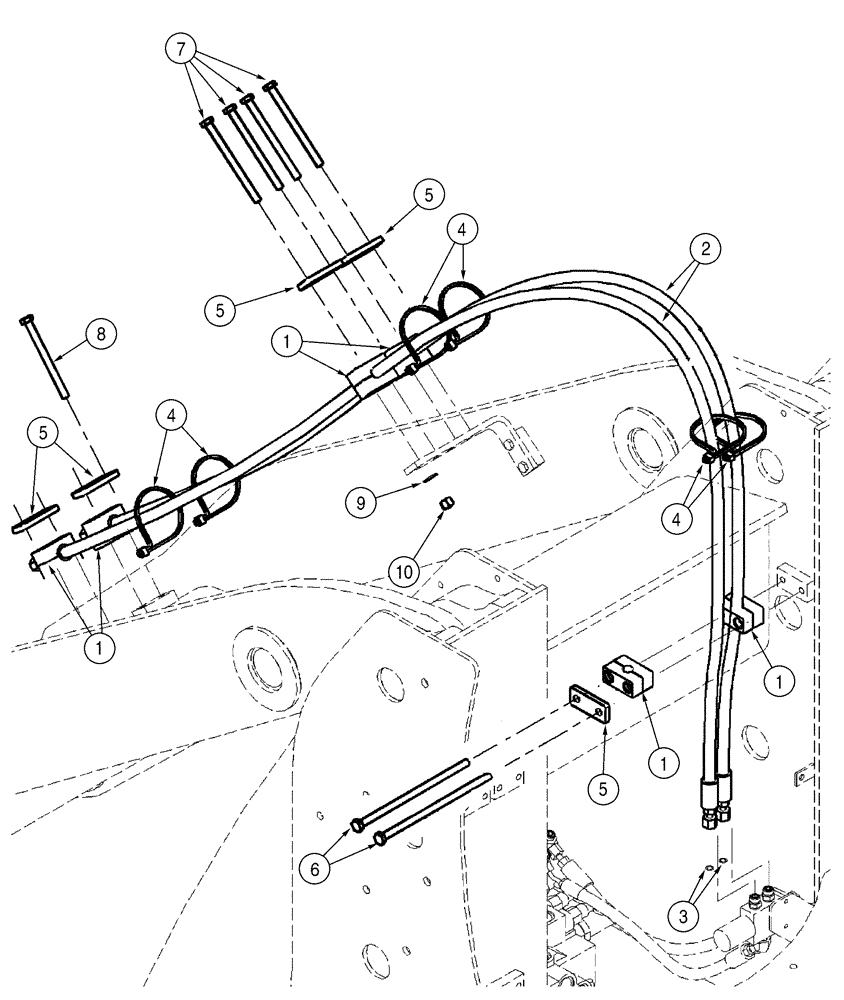

Запчасти Case 621D (08-13) - HYDRAULICS - COUPLER, XT LOADER (08) - HYDRAULICS

1

379374A1

BLOCK

6шт.

Mounting

1шт.

2

379428A1

HOSE ASSY.

2865 mm (112-13/16 in)

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Face Seal End

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

6шт.

5

367658A1

PLATE

5шт.

6

827-10215

BOLT,Hex, M10 x 1.5 x 215mm, Cl 10.9

2шт.

Three Spool

1шт.

6

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

Two Spool

1шт.

7

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

4шт.

Three Spool

1шт.

7

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

Two Spool

1шт.

8

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

4шт.

Three Spool

1шт.

8

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

Two Spool

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
