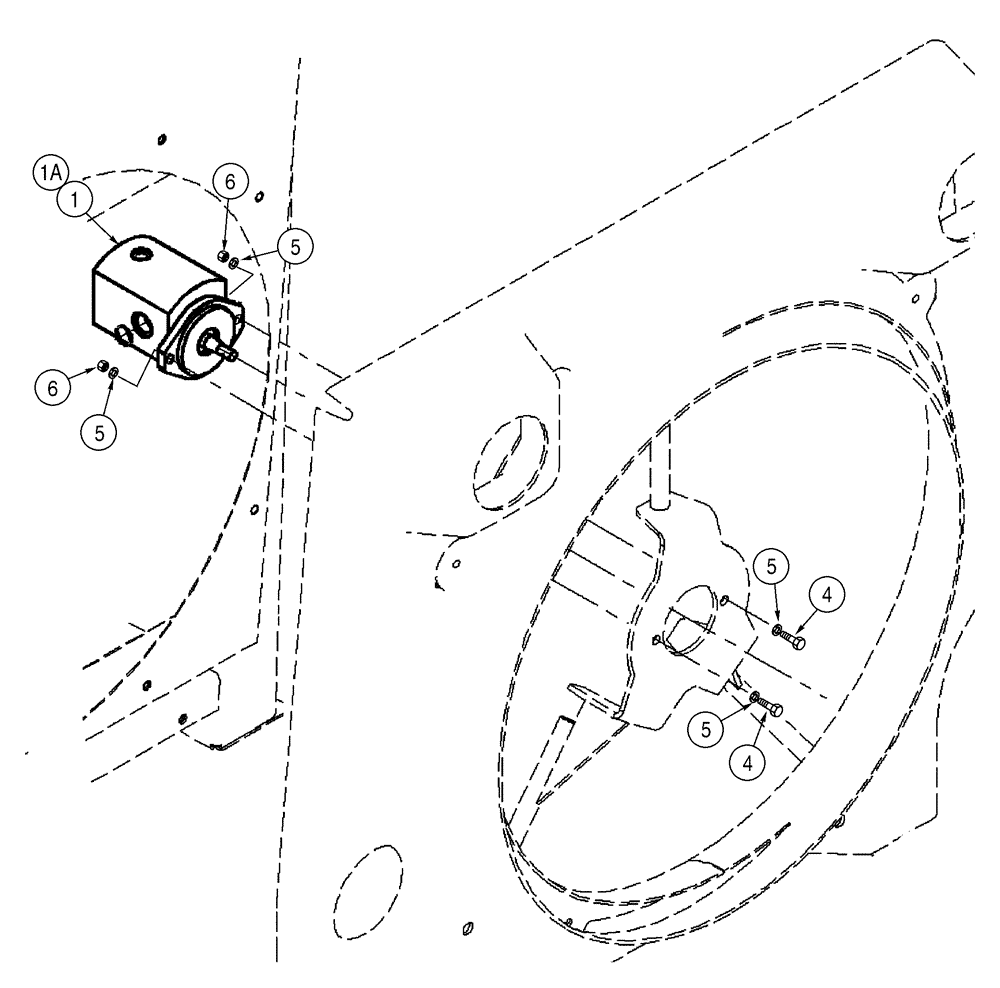

Запчасти Case 621D (02-07) - COOLING SYSTEM - MOTOR, DRIVE, MOUNTING (02) - ENGINE

1

400336A1

HYDRAULIC MOTOR

1шт.

87426773R

REMAN-HYD MOTOR

621D (BEFORE S/N JEE0135500) Reman For New P/N 400336A1

1шт.

87426773C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

Fan Drive

1шт.

Standard

1шт.

87426773R

REMAN-HYD MOTOR

621D (BEFORE S/N JEE0135500)

1шт.

87426773C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

Incl. 2, 3

1шт.

1a

400337A1

MOTOR, HYDRAULIC

1шт.

Fan Drive

1шт.

Reversible

1шт.

Incl. 2, 3

1шт.

2

410071A1

SEAL

1шт.

Not Illustrated

1шт.

3

410070A1

SEAL KIT

1шт.

Seal

1шт.

Component Parts Not Serviced Separately

1шт.

Not Illustrated

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
