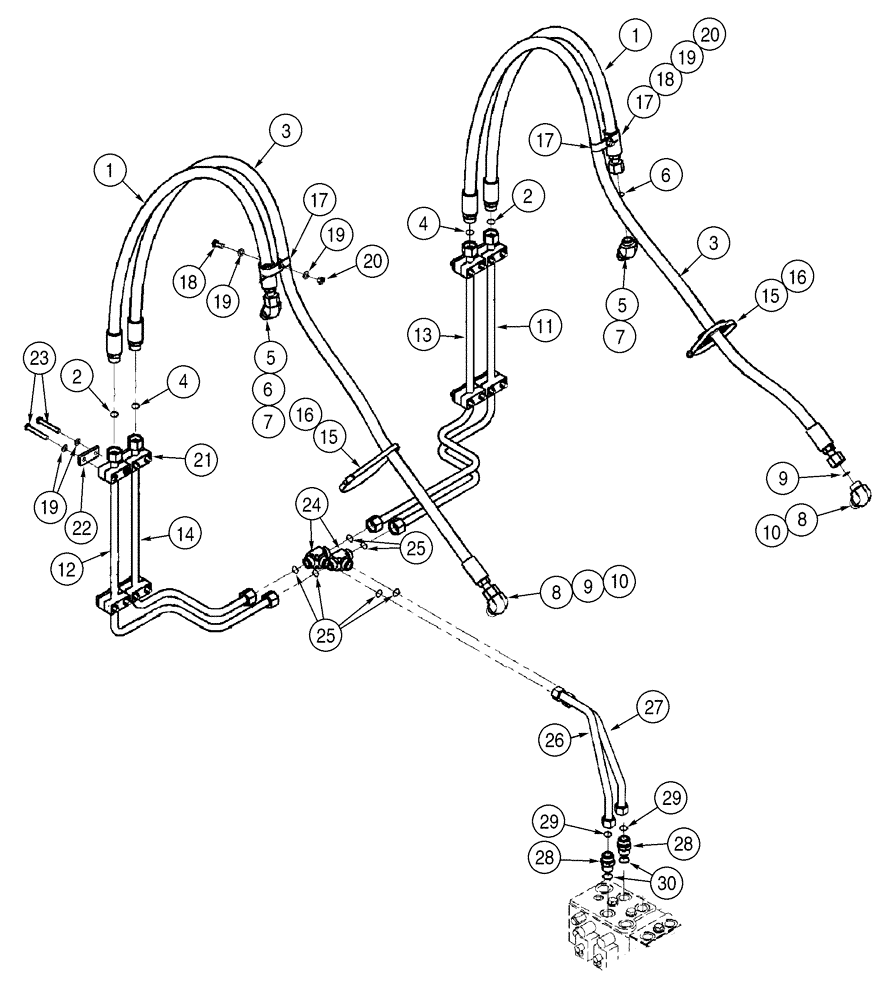

Запчасти Case 621D (08-07) - HYDRAULICS - LOADER BUCKET, XT LOADER (08) - HYDRAULICS

1

372605A1

HOSE ASSY.

1310 mm (51-9/16 in)

2шт.

Closed End

1шт.

Incl. 2

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

3

372606A2

HOSE ASSY.

2346 mm (92-3/8 in)

2шт.

Rod End

1шт.

Incl. 4

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

5

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2,7 orb

2шт.

Includes 6, 7

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

Incl. 9, 10

1шт.

9

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

11

372486A1

TUBE,25.4 mm OD, 600, 558 mm Length

1шт.

Closed End

1шт.

Left Hand

1шт.

12

372484A1

TUBE,25.4 mm OD, 600, 385 mm Length

1шт.

Closed End

1шт.

Right Hand

1шт.

13

372490A1

TUBE,25.4 mm OD, 550, 526 mm Length

1шт.

Rod End

1шт.

Left Hand

1шт.

14

372488A1

TUBE,25.4 mm OD, 550, 257 mm Length

1шт.

Rod End

1шт.

Right Hand

1шт.

15

367533A1

CLAMP

2шт.

16

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

17

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

4шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

20шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

367489A1

BLOCK

8шт.

Mounting

1шт.

22

367658A1

PLATE

8шт.

23

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

16шт.

24

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

2шт.

Incl. 25

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

Face Seal End

1шт.

26

389351A1

TUBE,25.4mm OD, 410, 255mm Length

1шт.

Closed End

1шт.

27

389349A1

TUBE,22mm ID x 25mm OD x 360mm L

1шт.

Rod End

1шт.

28

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

Incl. 29, 30

1шт.

29

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face Seal End

1шт.

30

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.
