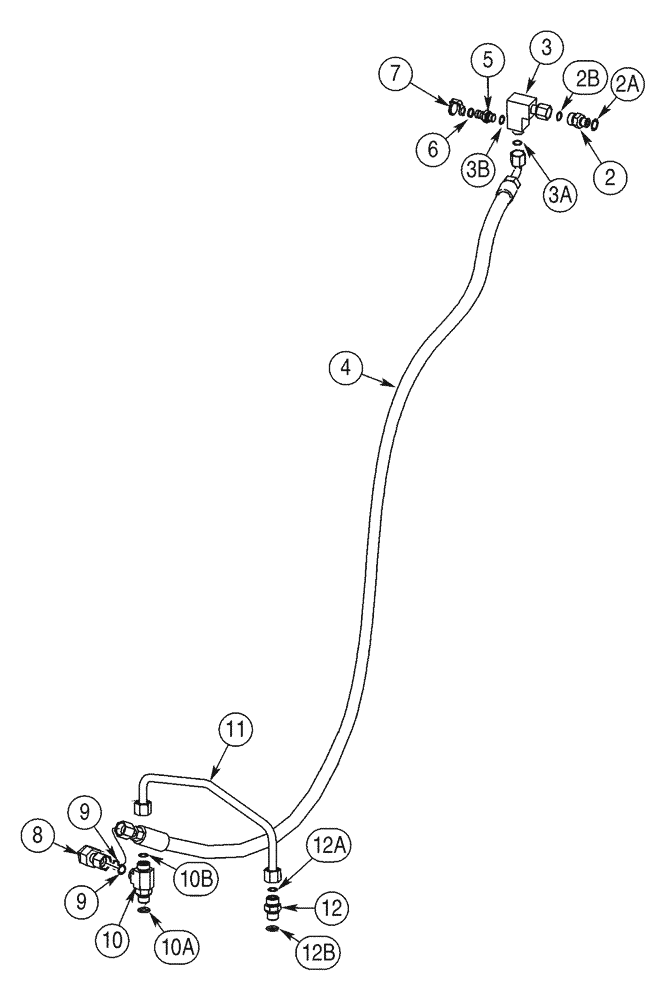

Запчасти Case 621D (07-07) - HYDRAULICS - BRAKE, MAIN, MAIN BRAKE VALVE TO REAR AXLE (07) - BRAKES

1

414101A1

VALVE

1шт.

Main Brake Valve

1шт.

See Figure XX-XX

1шт.

Not Illustrated

1шт.

2

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

1шт.

Incl. 2A, 2B

1шт.

2a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

2b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

3

377754A1

FITTING

1шт.

Incl. 3A, 3B

1шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

3b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

4

387017A1

HOSE ASSY.

1889 mm lg

1шт.

Rear Brakes

1шт.

178889A1

DIAGNOSTIC COUPLER

1шт.

Diagnostic

1шт.

Incl. 5, 6, 7

1шт.

5

243670A1

COUPLING

1шт.

Incl. 6

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Boss End

1шт.

7

143349A1

DUST CAP

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

Incl. 9

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Face Seal End

1шт.

10

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

Incl. 10A, 10B

1шт.

10a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.

10b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

11

386823A1

TUBE

1шт.

Rear Axle

1шт.

12

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

Incl. 12A, 12B

1шт.

12a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Face Seal End

1шт.

12b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Boss End

1шт.
