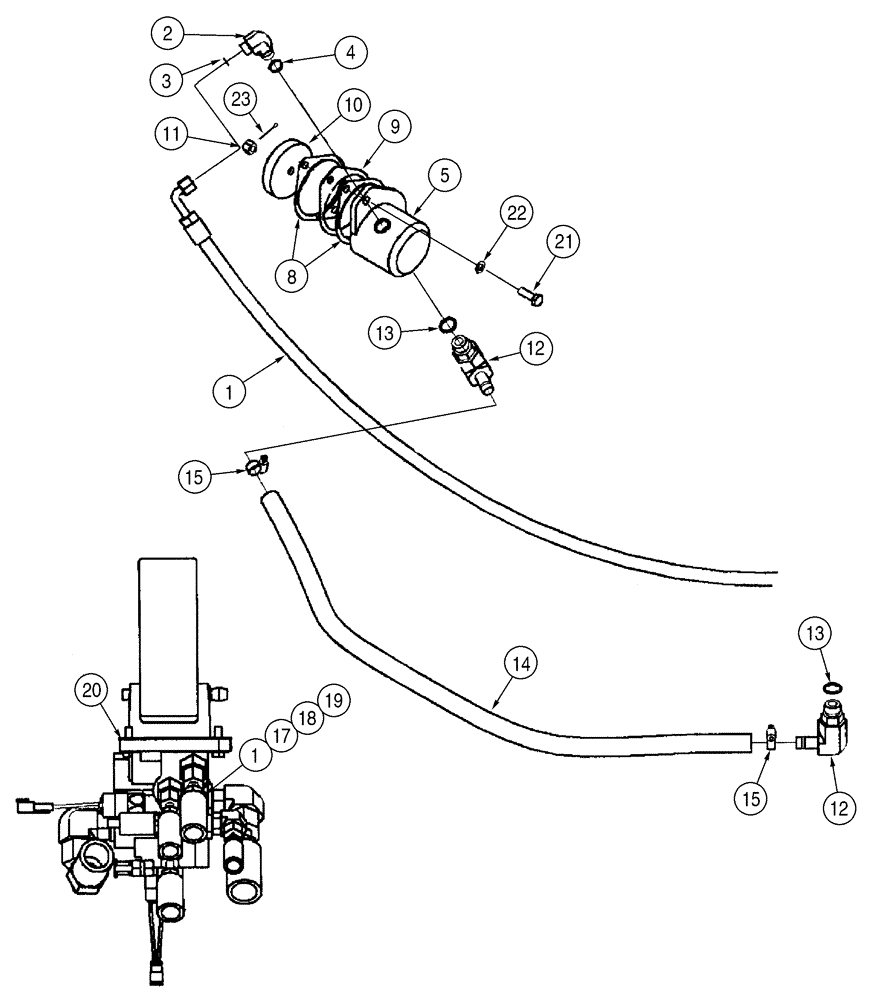

Запчасти Case 621D (07-04) - HYDRAULICS - BRAKE, MAIN, RESERVOIR TO PUMP TO ACCUMULATOR VALVE (07) - BRAKES

1

386267A1

HOSE ASSY.

Pressure, Brake Pump, 3269 mm lg

1шт.

2

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 3, 4

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Face Seal End

1шт.

5

410610A1

PUMP,13 CC

1шт.

410610A1R

REMAN-HYD PUMP

621D CASE WHEEL LOADER (BEFORE S/N JEE0135500)

1шт.

410610A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

A77441

GASKET

2шт.

9

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

1шт.

10

J924186

GEAR

1шт.

11

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

12

372029A2

ELBOW

Incl. 13

2шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Face Seal End

1шт.

14

386260A1

HOSE,19.05 mm ID x 1406.00 mm, SAE 100R4 Type 2

Pump To Accumulator Valve

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

16

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

(Not Shown)

1шт.

17

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 18, 19

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Boss End

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

20

414101A1

VALVE

Brake Accumulator Valve, Inc. 21 And 24 - 26

1шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

22

892-11012

LOCK WASHER,M12

2шт.

23

432-616

COTTER PIN,3/32" x 1"

1шт.

24

390431A2

SWITCH

Brake Light Pressure (Not Shown)

1шт.

25

390435A2

SWITCH

Brake Warning Pressure (Not Shown)

1шт.

26

408933A1

CARTRIDGE

Parking Brake Solenoid (Not Shown)

1шт.
