(06-39) - DRIVE SHAFT - CENTER AND REAR, CENTER DRIVE SHAFT, REAR

Запчасти Case 621D (06-39) - DRIVE SHAFT - CENTER AND REAR, CENTER DRIVE SHAFT, REAR (06) - POWER TRAIN

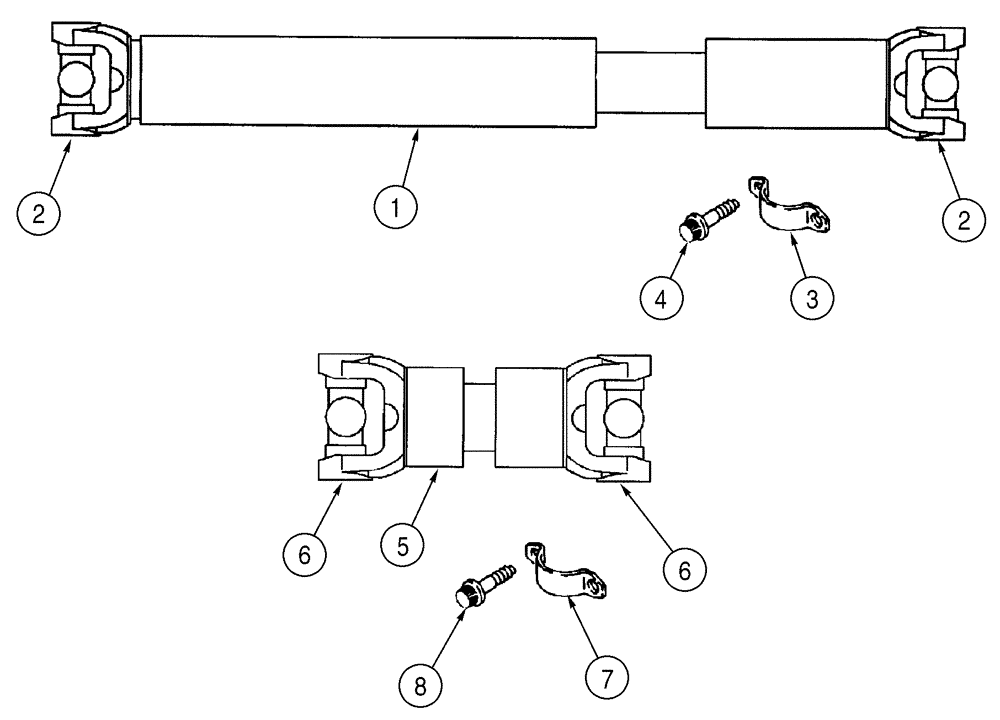

Схема запчастей Case 621D - (06-39) - DRIVE SHAFT - CENTER AND REAR, CENTER DRIVE SHAFT, REAR (06) - POWER TRAIN
8
1
5
2
4
7
6
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86990312

DRIVE SHAFT

Center, (Replaces 352069A1)

1шт.

Incl. 2

1шт.

2

8604675

BEARING ASSY

Incl. U-Joint, Grease Fitting, and 4 Snap Rings; Replaces 403573A1

2шт.

3

L116943

SECURING STRAP

4шт.

Bearing

1шт.

4

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

8шт.

Bearing Strap

1шт.

5

352072A1

DRIVE SHAFT

Rear

1шт.

Incl. 6

1шт.

6

403573A1

SPIDER ASSY.,34.92mm Cap Dia, 125.98mm L, Grease-able

2шт.

7

L116943

SECURING STRAP

4шт.

Bearing

1шт.

8

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

8шт.

Bearing Strap

1шт.
